Kern Sound Level Meter SU 130 Measuring range Sound 30 dB – 130 dB Readability sound [d] (dB) 0,1 dB

Description

• Sound level meter with basic functions for measuring noise in areas such as, environment, mechanical applications, car industry and much more
• Measures the sound intensity in the workplace
• Helps in differentiating between normal noise influences, and excessive noise, nuisances e.g. in a production hall

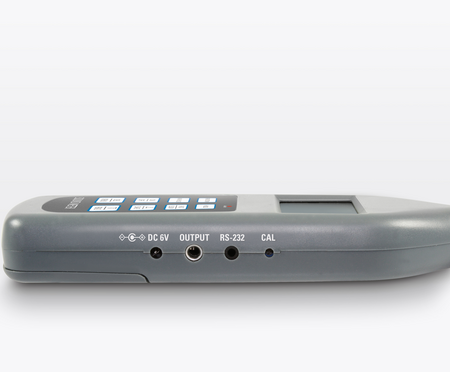

• Data interface RS-232, included
• Multi measuring functions:
  Lp: Standard sound level measuring function
  Leq: Energy equivalent sound level measuring mode (type A)
  Ln: Shows the deviation from a pre-defined limit in %
• Selectable methods of evaluation:
  A: As sensitive as the human ear
  C: Sensitive for noisier environmental conditions, where there are machines, plant, motors etc.
  F: For areas with constant sound intensity
• Limit value function: programmable value for the maximum level value
• Track function for continuous recording of changing environmental conditions
• Peak Hold function to capture peak value
• Internal memory for 30 measured values, transferable to PC with SAUTER ATC-01

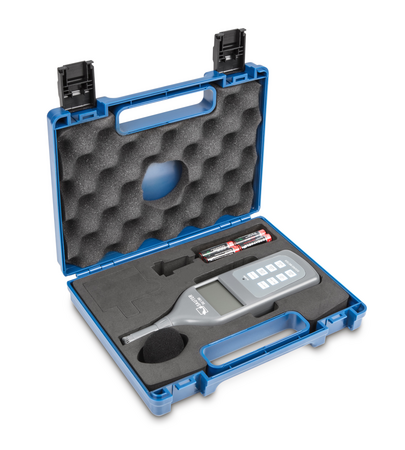

• Delivered in a robust carrying case

• Technical Data

  Measuring range Sound	30 dB – 130 dB
  Readability sound [d] (dB)	0,1 dB
  Tolerance (% of [Max])	3%
  Units	dB
  Sound level measuring modes	Lp, Leq, Ln
  Sound level methods of evaluation	A, C, F
  Frequency range	20 Hz – 12,5 kHz
  Memory function
  Hold function
  Peak function
  Limit-setting function
  Microphone sensitivity	30 mV/Pa
  Battery	4×1.5 V AAA
  Material housing	plastic
  Dimensions completely mounted (W×D×H)	236×63×40 mm
  Product family	SU
