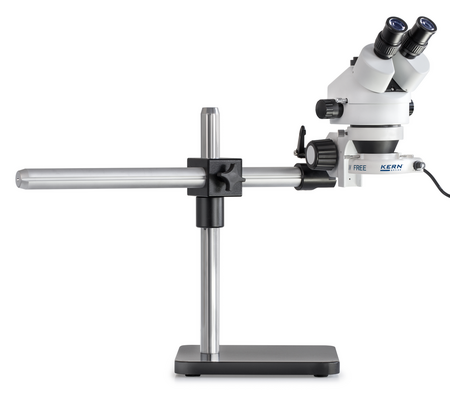

Predefined stereo microscope set with simple telescopic arm and 4.5 W ring illumination unit for greater flexibility at the workstation
Technical Data
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Reflected light |
| Illumination intensity incident light | 4,5 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Working distance | 100 mm |
| Sample height [Max] | 140 mm |

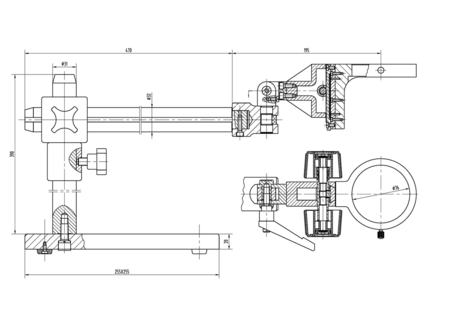

| Stand type | universal (telescopic arm with plate) |
| Dimension (W×D×H) | 700×255×600 mm |
| GTIN/EAN number | 4045761189447 |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
