Description
- To enable the highest level of flexibility for your special requirements and applications, we have a large selection of stereo microscope heads, universal stands and external illumination units, which are easy to combine.
- Through the different properties of the stereo microscope heads, as well as the flexibility of the universal stands and the professional fixing of our brackets, we can configure your ideal microscope to suit your needs.
- There are various microscope heads available from our product range for this purpose, both as binocular or trinocular versions.

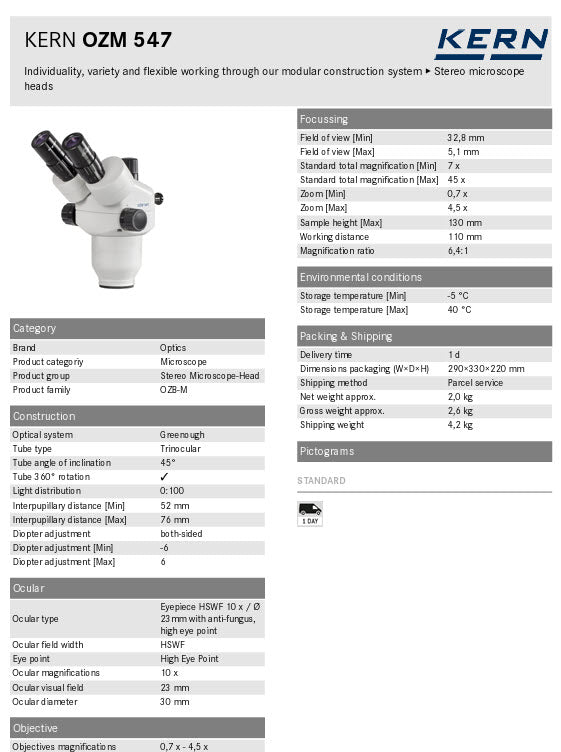

Technical Data
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 23 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Working distance | 110 mm |
| Sample height [Max] | 130 mm |
| Field of view [Min] | 32,8 mm |
| Field of view [Max] | 5,1 mm |
| Objective zoom | 0,7 x / 4,5 x |
| Product family | OZB-M |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
