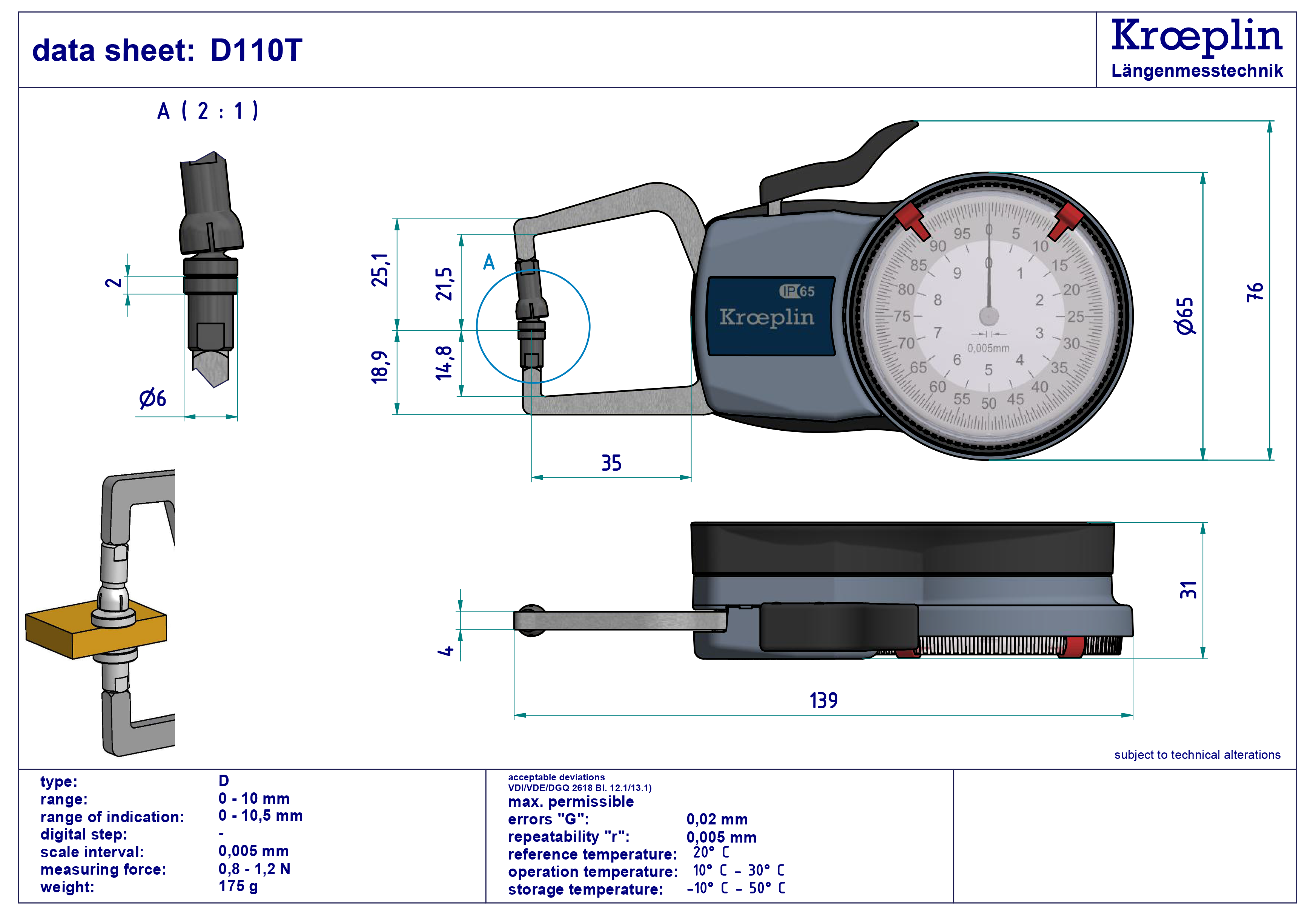

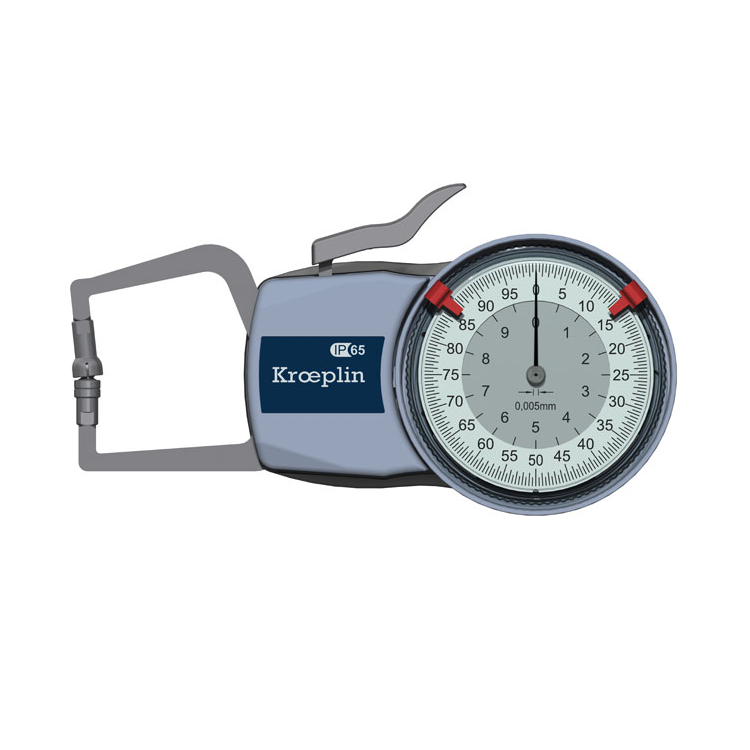

This Kroeplin external caliper gauge comes with flat contacts.
External Caliper Features:
- Range: 0-10mm
- Resolution: 0.005mm
- Accuracy: ± 0.02mm
- Repeatability: 0.005mm

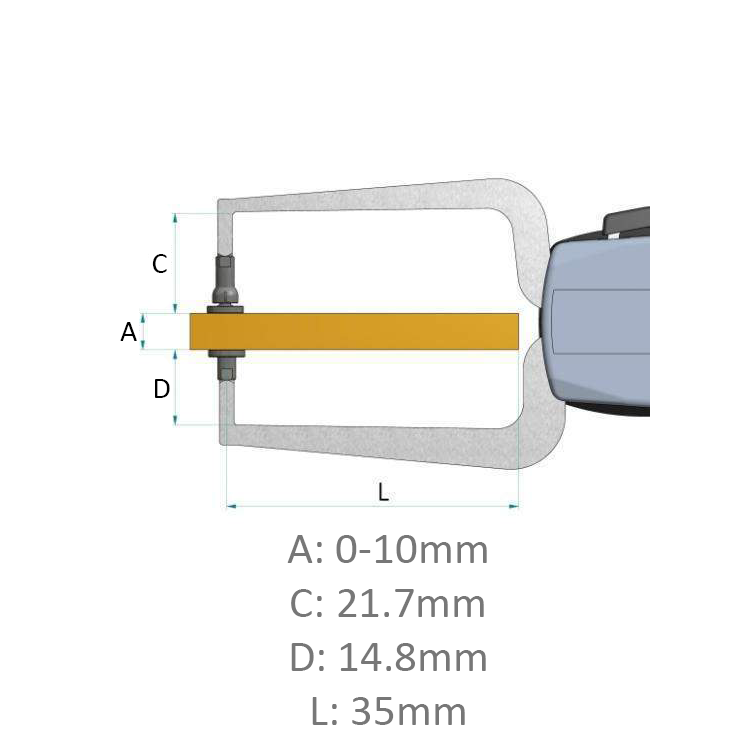

- Measuring depth: 35mm

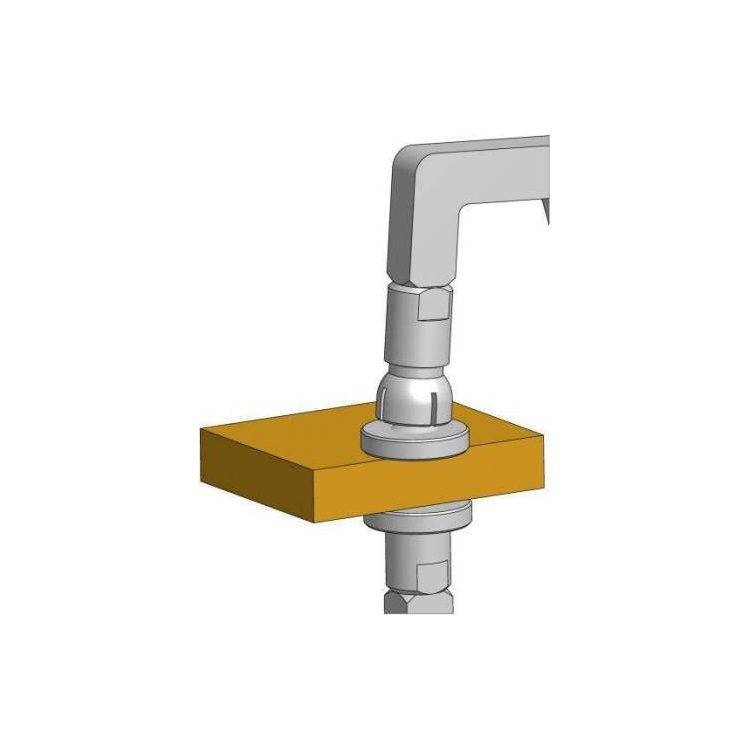

- Type of measuring contact: Flat Ø 6mm
- Measuring contact moveable: 21.7mm
- Measuring contact fixed: 14.8mm
- Min measuring force: 0.8N
- Max measuring force: 1.2N
- IP65 protection: Water, coolant & dust resistant
- Application: Measurement of foamed material and foils
