Type |

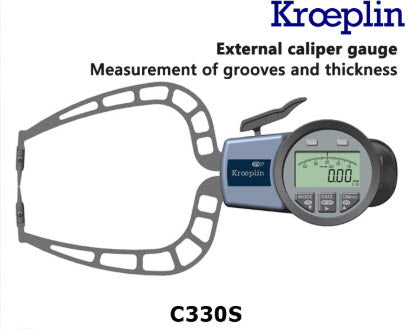

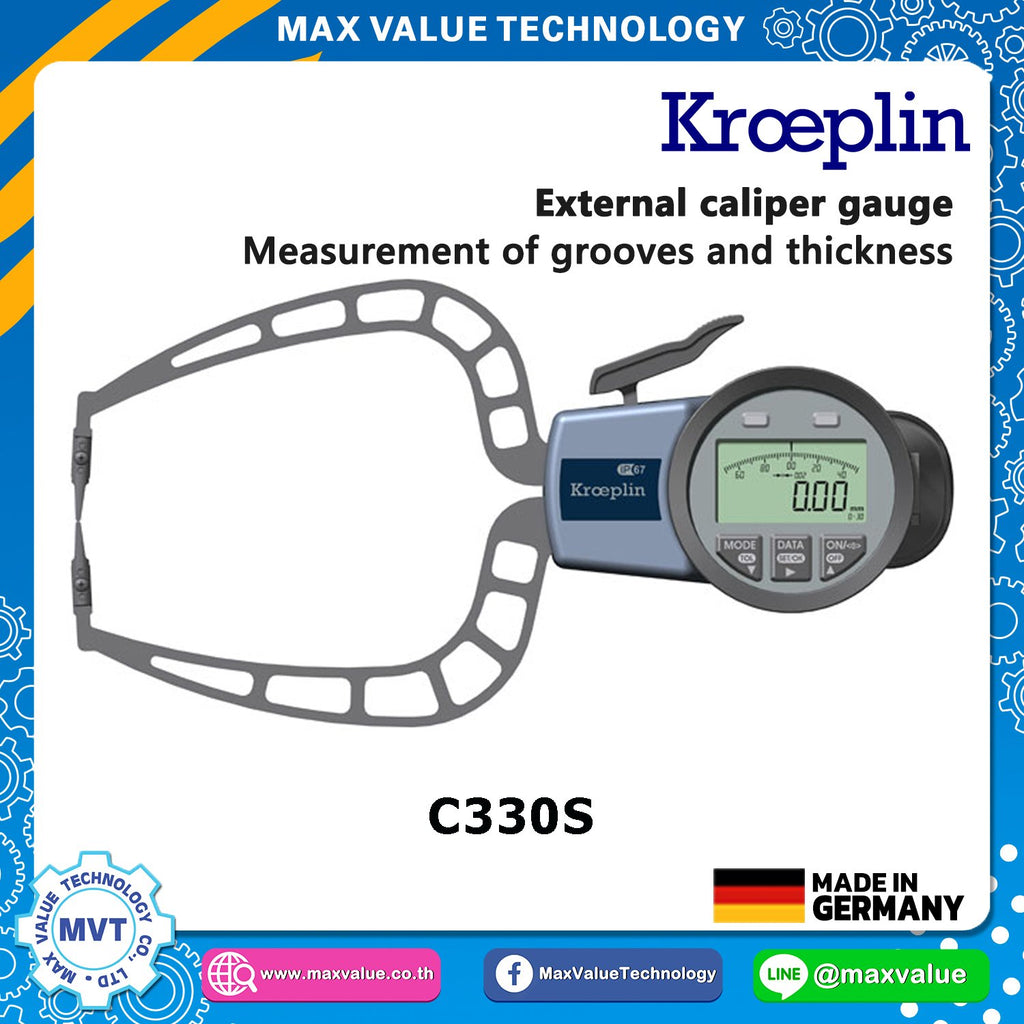

C330S |
|
Display mm / inch |
mm + inch |
| Application | External measurement |
| Measuring span Mes | 30 mm |
|
Measuring range Meb |
0 – 30 mm |
| Range of indication Azb | 0 – 30,5 mm |
| Numerical interval Zw | 0,02 / 0,05mm |
| Max. permissible errors G | 0,04 mm |
| Repeatability limit r | 0,02 mm |
| Measuring force F min. | 0,9 N |
| Measuring force F max. | |
| Type of measuring contact movable | |
| Measuring contact movable Hb | 30 mm |
| Type of measuring contact fixed | |
| Measuring contact fixed Hf | 30 mm |
| Measuring depth max. L | 116 mm |
| Weight | 430 g |
| Protection class | IP67 |
