MitutoyoSKU: 542-720D
List price: £14,690.00 Offer price: £10,724.00 Excluding VAT

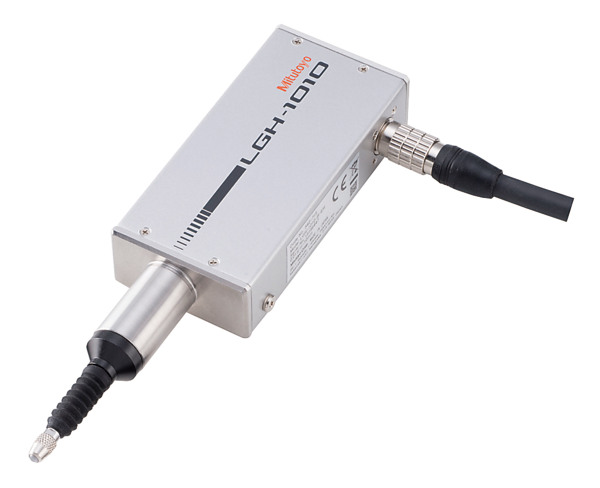

This is a highly precise dial gauge that uses optical interference so you can measure
with unparallelled accuracy.
The Mitutoyo Laser Hologage offers you the following benefits:
  • Through optical interference of laser light through a diffraction grating it gives you an
    extremely precise holographic scale with 0.005 µm resolution.
  • The measuring head is very compact, enabling you to build it into various systems far less
    expensively than conventional laser technology.

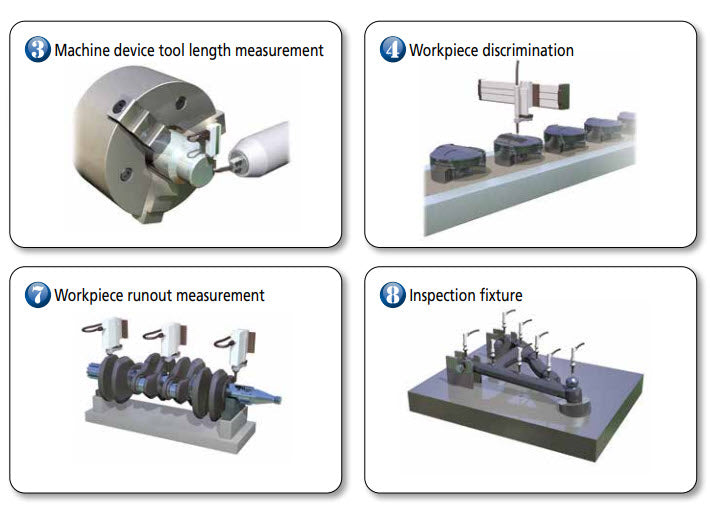

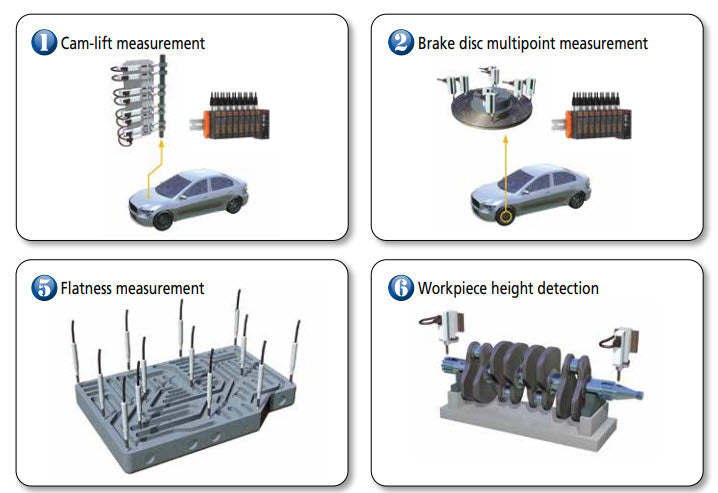

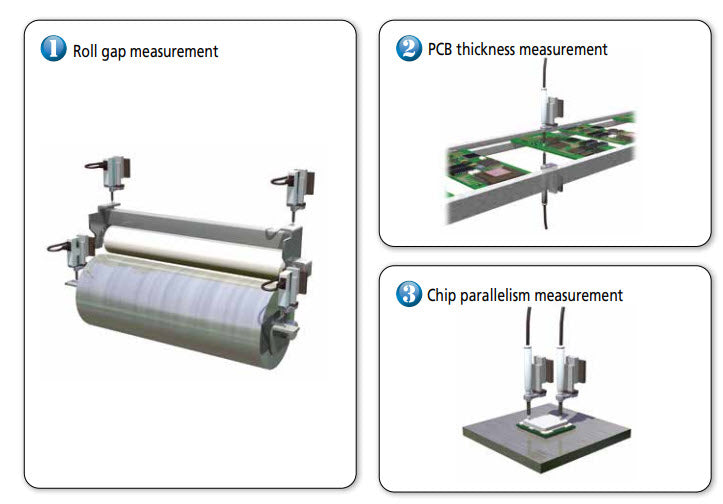

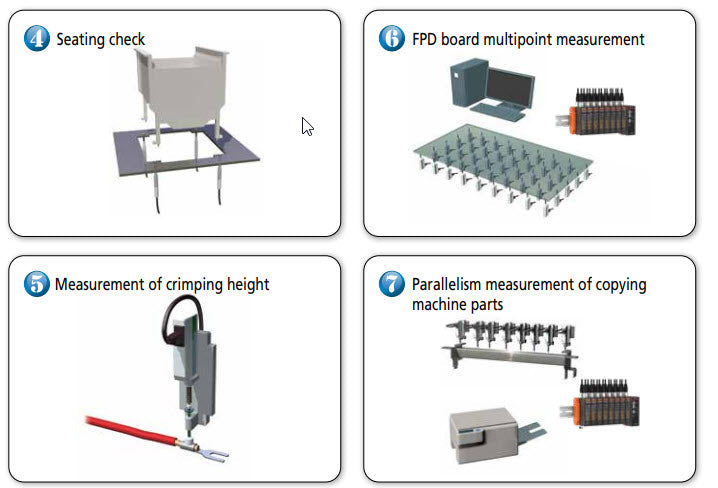

  • You can use the Laser Hologage for measuring extremely precise parts, as well as a transducer in ultra-precise positioning and control systems.

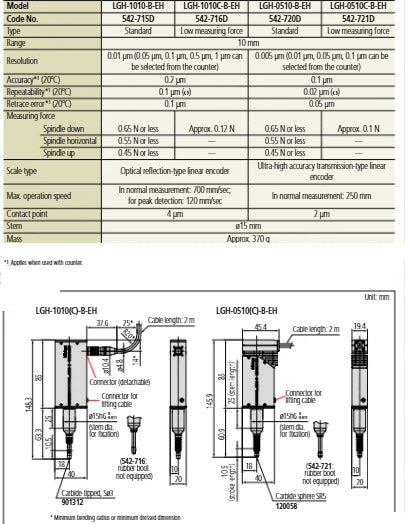

Features
Accuracy:
0,1µm
Measuring force:
0.65 N with spindle down, 0.55 N spindle horizontal, 0.45 N spindle upwards
Resolution:
0.005 µm
Stem ?:
15 mm
Digimatic data output:
Yes
ON/OFF:
Yes
Repeatability:
0,02 µm
Scale:
Laser-hologram measurement sensor
Max. response speed:
250 mm/s
Contact point radius:
R=5 mm carbide
Bearing type:
High precision linear ball bearing
Mm?/?inch switching:
Yes
Environmental conditions:
10°C to 30°C
(30% to 70% rel. humidity, no condesation) °C
Extern tolerance set
(when a PC is used):
Yes
Delivered:
With Display Unit
