Laser Hologauge LGH-1010-B-EH 542-721D Resolution .005mm Accuracy .1µm Range 10mm x .4" Low Force

Roll over image to zoom in Click on image to zoom

Laser Hologauge LGH-1010-B-EH 542-721D Resolution .005mm Accuracy .1µm Range 10mm x .4" Low Force

Name: Laser Hologauge LGH-1010-B-EH 542-721D Resolution .005mm Accuracy .1µm Range 10mm x .4" Low Force
Brand: Mitutoyo
SKU: 542-721D
Price: 10724.0 GBP
Availability: InStock

MitutoyoSKU: 542-721D

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£10,724.00 £14,690.00

Quantity:

All prices exclude VAT, which will be added at checkout.

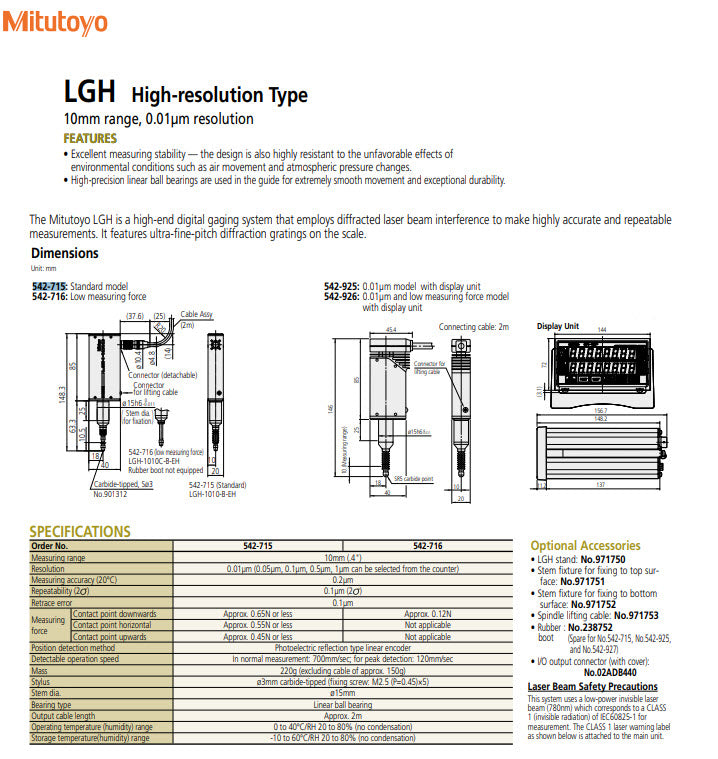

This is a highly precise dial gauge that uses optical interference so you can measure
with unparallelled accuracy.
The Mitutoyo Laser Hologage offers you the following benefits:

Through optical interference of laser light through a diffraction grating it gives you an
extremely precise holographic scale with 0.005 µm resolution.
The measuring head is very compact, enabling you to build it into various systems far less
expensively than conventional laser technology.

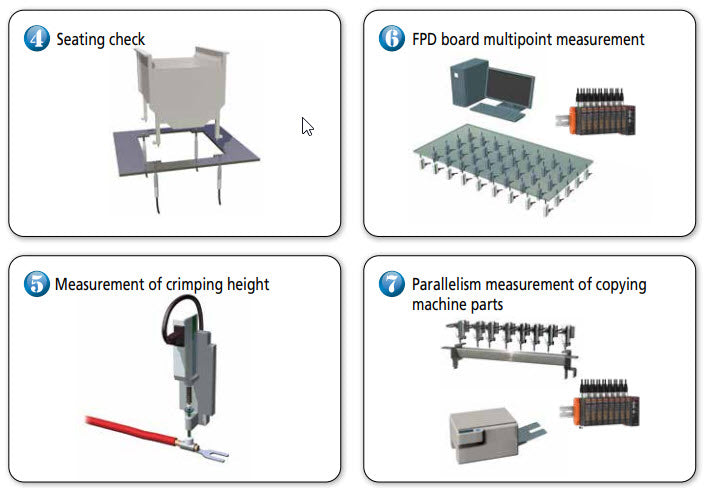

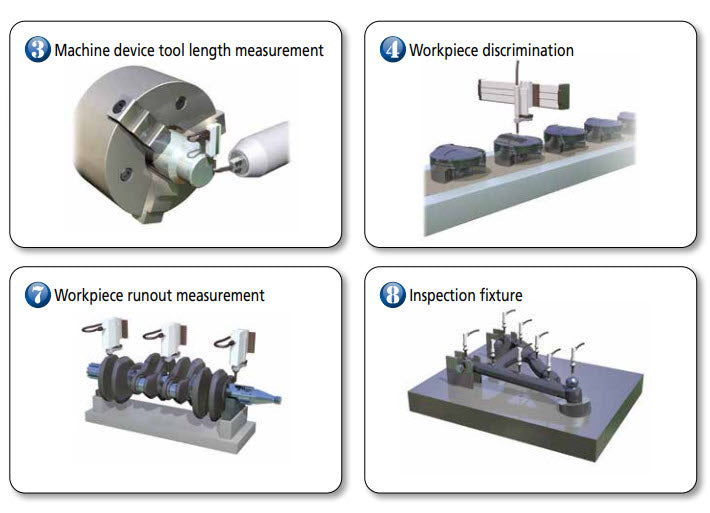

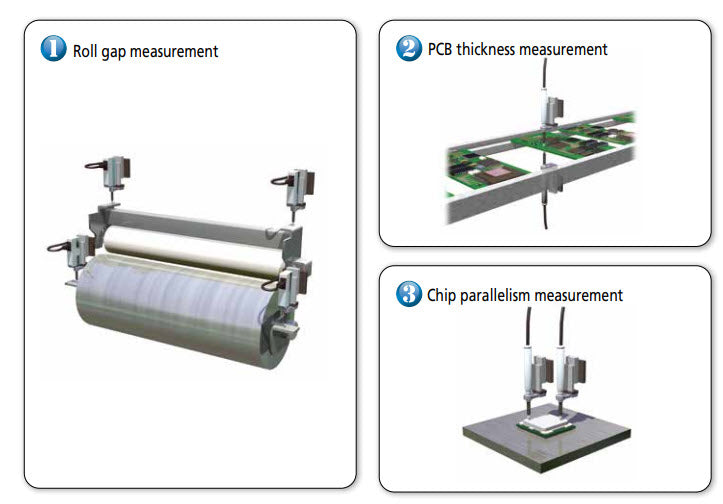

You can use the Laser Hologage for measuring extremely precise parts, as well as a transducer in ultra-precise positioning and control systems.

Features

Accuracy:	0,1µm
Measuring force:	0.01 N
Resolution:	0.005 µm
Stem ∅:	15 mm
Digimatic data output:	Yes
ON/OFF:	Yes
Repeatability:	0,02 µm
Scale:	Laser-hologram measurement sensor
Max. response speed:	250 mm/s
Contact point radius:	R=5 mm carbide
Bearing type:	High precision linear ball bearing
Mm / inch switching:	Yes
Environmental conditions:	10°C to 30°C (30% to 70% rel. humidity, no condesation) °C
Extern tolerance set (when a PC is used):	Yes

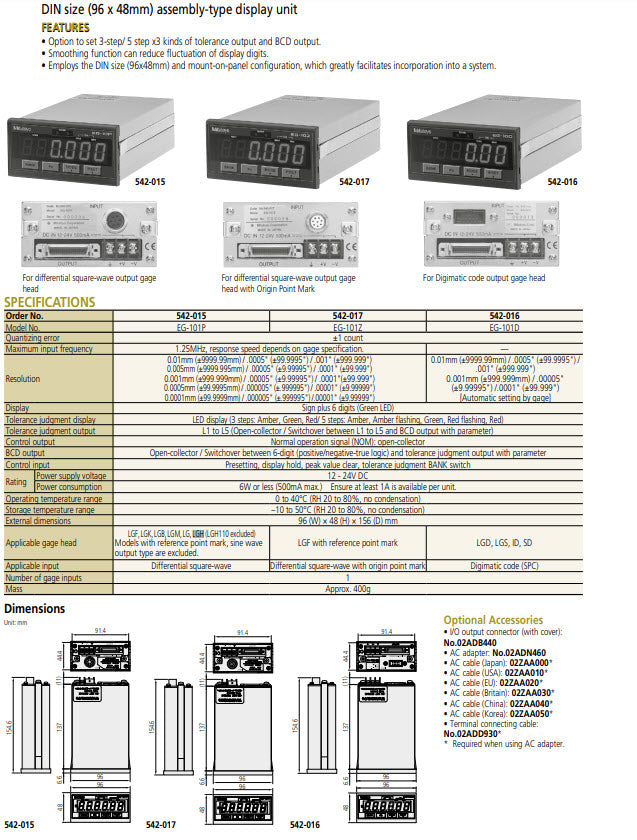

Delivered:	With Display Unit

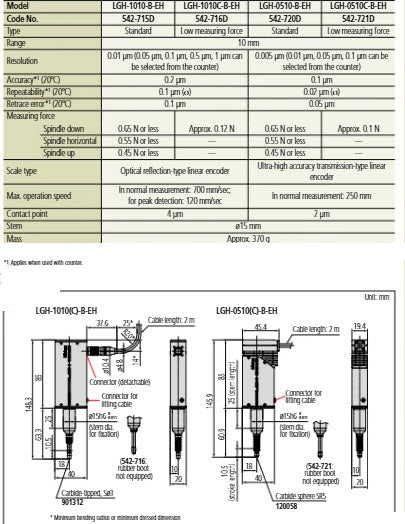

Product Information
Part Number	542-721D
Measuring Ranges	0-10mm
Resolution	.005µm, 0.01μm (0.05μm, 0.1μm, 0.5μm, 1μm can be selected from the counter
Accuracy	.0001mm
Unit of Measurement	Metric Inch
Measuring Force	0.1N
Detection Method	Reflection type photoelectric linear encoder
Maximum Response Speed	400 mm/s
Stem	15mm
Scale	Ultra-High accuracy transmission type linear encoder
Manufacturer	Mitutoyo
