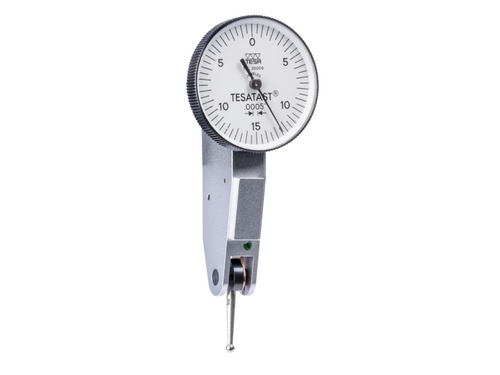

TESATAST Lever-type dial test indicator 0.03" Travel 0.0005" Resolution Ø 1.5" 01820007
SPECIFICATION
| Measuring force | Low measuring force |
| Units | mm |
| Standard | DIN 2270 / EN ISO 9493 |
| Material | Housing: metal Ball inserts: tungsten carbide |
| Dimensions | Insert thread: M1,4 |
| Dial | Rotating dial |
| Particular characteristic(s) | Integrated shockproof system |
| Included in delivery | Lever-type dial test indicator with mounted ball insert Ø 2 mm Wrench for insert mounting Rigid stem Ø 8 mm User manual Declaration of conformity |
