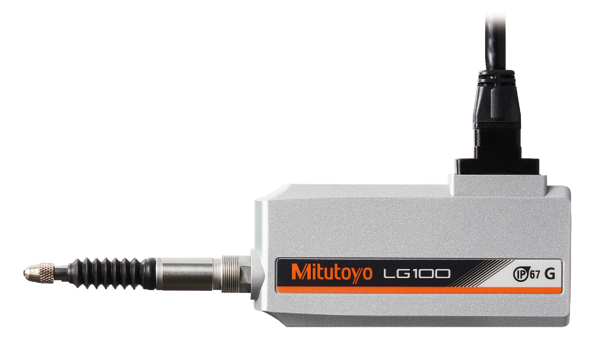

Linear Gauge LG100-110 10 mm 542-192 .0001mm resolution

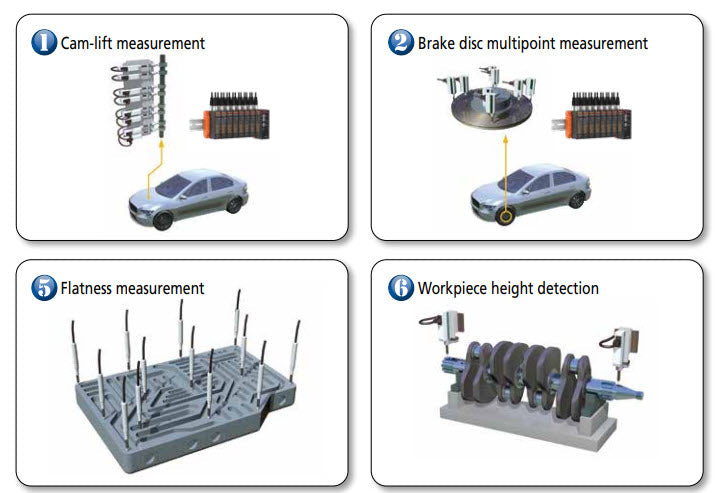

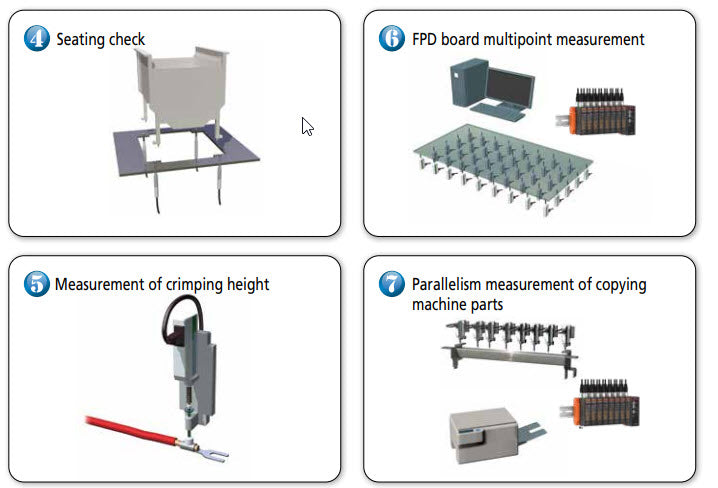

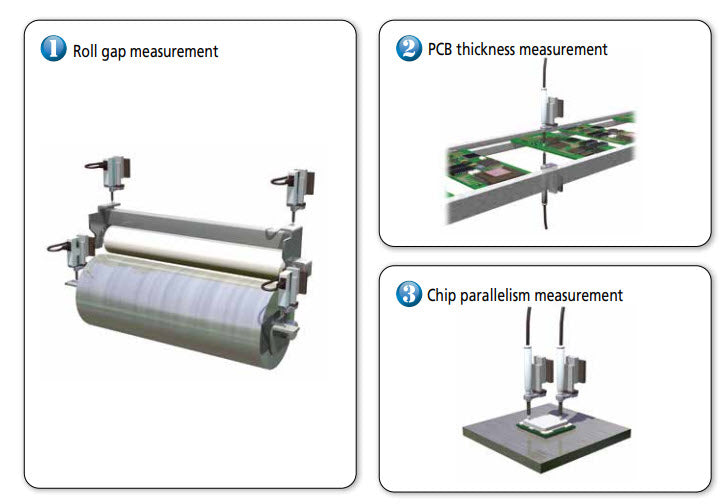

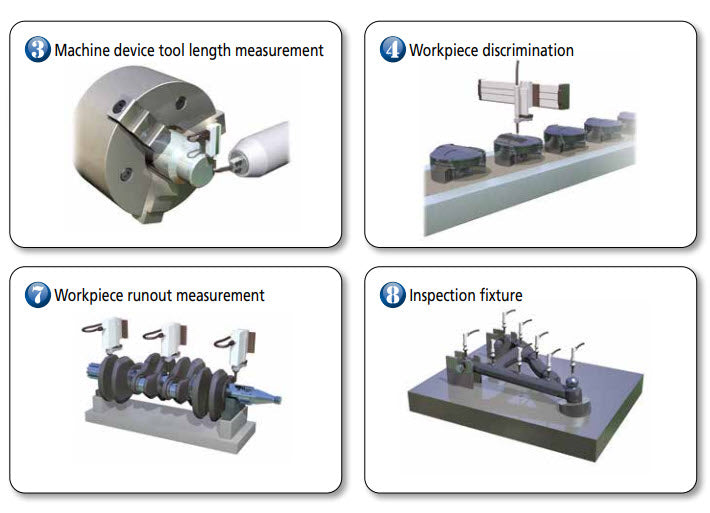

The LG100 is a very robust and economical linear gauge for in-line use and automatic machines, in combination with the EJ Counter. EH-counters can be used as well.

• The advanced construction of the plunger guidance assembly makes it very resistant to external shocks and vibrations.
• Its differential square-wave signal output allows for a wide range of applications.
• Long-lasting due to linear ball-bearings in the spindle unit.
• Repeatability of 0.3 µm.
• Narrow range accuracy: 0.5 µm (20 µm range).
• Operation temperature range: 0 - 50°C.
