Linear Gauge LG100-110 25 mm 542-195 .0001mm resolution

Roll over image to zoom in Click on image to zoom

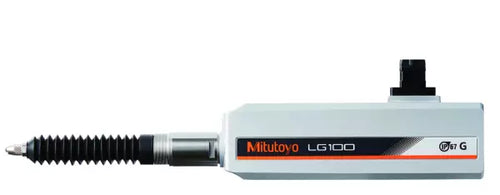

Linear Gauge LG100-110 25 mm 542-195 .0001mm resolution

Name: Linear Gauge LG100-110 25 mm 542-195 .0001mm resolution
Brand: Mitutoyo
SKU: 542-195
Price: 721.0 GBP
Availability: InStock

MitutoyoSKU: 542-195

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£721.00 £987.00

Quantity:

All prices exclude VAT, which will be added at checkout.

The LG100 is a very robust and economical linear gauge for in-line use and automatic machines, in combination with the EJ Counter. EH-counters can be used as well.

The advanced construction of the plunger guidance assembly makes it very resistant to external shocks and vibrations.
Its differential square-wave signal output allows for a wide range of applications.
Long-lasting due to linear ball-bearings in the spindle unit.
Repeatability of 0.3 µm.
Narrow range accuracy: 0.5 µm (20 µm range).
Operation temperature range: 0 - 50°C.

Features

Range:	0 - 25 mm
Accuracy:	(.08+L/50) μm L=measured length in mm
5	5.7 N with spindle down, 4.3 N with spindle horizontal, 4.9N with spindle upwards
Resolution:	0.0001 mm
Stem ∅:	15 mm
Cable length:	2 m
Mass:	300 g
Scale:	Photoelectric linear encoder
Max. response speed:	400 mm/s
Contact point:	Ø3 mm carbide ball, thread: M 2.5 x 0.45
Output signal:	90° phase difference, differential square wave (RS-422 equivalent)
Environmental conditions:	0°C to 50°C (20% to 80% rel. humidity, no condensation) °C
Bearing type:	Linear ball bearing
Signal pitch:	4 µm
Power supply:	DC 5 V ±0.2 V ripple voltage200 mVpp max
Minimum edge distance:	500 ns (1 μm type), 250 ns (0.5/0.1 μm type)
Scale reference point:	3 mm from the lowest rest point (10 mm type), 5mm from the lowest rest point (25/50 mm type)

Product Information
Part Number	542-195
Measuring Ranges	0-25mm
Resolution	.0001mm/.000005"
Accuracy	0.8 + L/50 µm
Unit of Measurement	Metric Inch
IP Rating	IP67
Measuring Force	≤5.7N
Detection Method	Optical transmission-type Linear encoder
Maximum Response Speed	400 mm/s
Stem	15mm
Manufacturer	Mitutoyo
