Linear Gauge LG200-0110 542-187 10mm /.4" Range .0005mm/.00002"

Roll over image to zoom in Click on image to zoom

Linear Gauge LG200-0110 542-187 10mm /.4" Range .0005mm/.00002"

Name: Linear Gauge LG200-0110 542-187 10mm /.4" Range .0005mm/.00002"
Brand: Mitutoyo
SKU: 542-187
Price: 581.7 GBP
Availability: InStock

MitutoyoSKU: 542-187

All prices exclude VAT, which will be added at checkout.

Price:

£581.70 £831.00

Quantity:

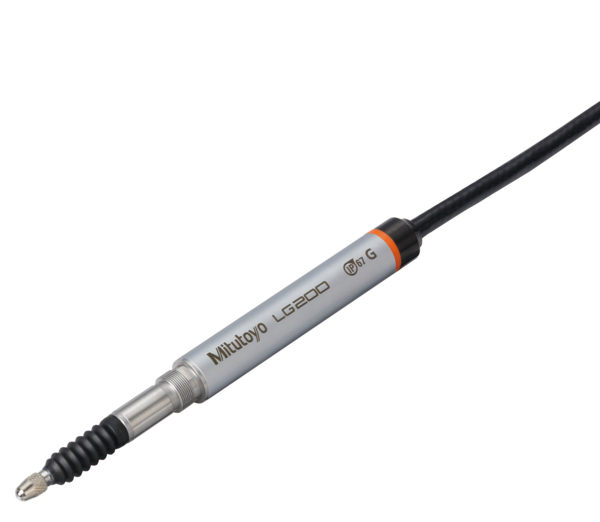

This slim type linear gauge allows you to meet a variety of measurement needs.

Differential square wave signal output enables use for a wide range of applications.
Due to its compact design, you can install it even where space is restricted.
Its photoelectric scale delivers high precision across the entire measuring range.
Extremely long-lasting due to linear ball-bearings in the spindle unit.
Perfect for use in tough environments, they come with a high IP class of IP67G.
Ideal for in-line measurement and embedded in automatic machines.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

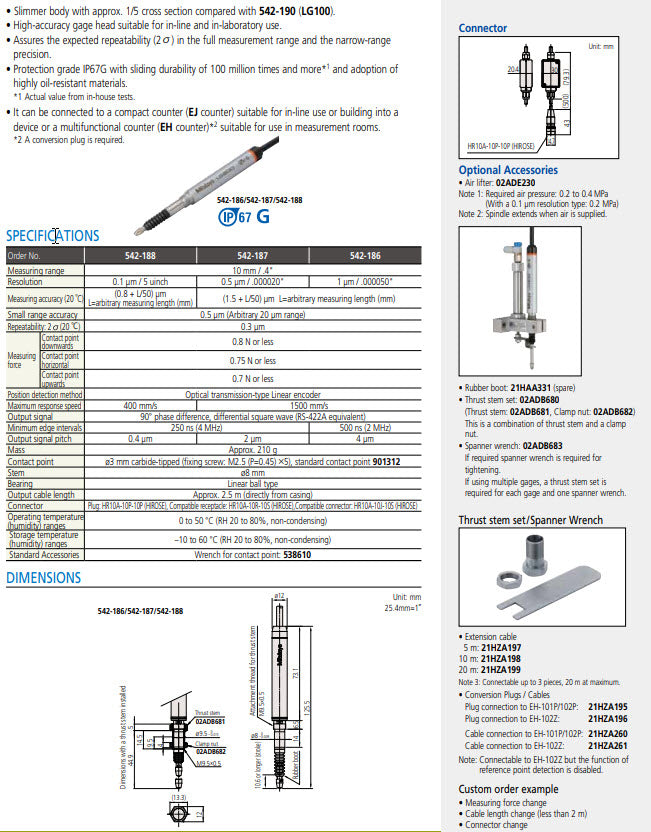

Product Information
Part Number	542-187
Measuring Range	0-10mm
Resolution	.0005mm/.00002"
Accuracy	1.5 + L/50 µm
Unit of Measurement	Metric Inch
IP Rating	IP67
Measuring Force	≤0.8N
Detection Method	Optical transmission-type Linear encoder
Maximum Response Speed	1,500 mm/s
Stem	8mm
Resolution/Capacity	.0005mm/.00002"

Range:	0 - 10 mm
Accuracy:	1.5+ L/50) µm L=measured length in mm
Measuring force:	0.8 N with spindle down, 0.75 N spindle horizontal, 0.7 N spindle upwards
Resolution:	0.0005 mm/.00002"
Scale:	Photoelectric linear encoder
Stem ∅:	8 mm
Contact point:	Ø 3 mm carbide ball, thread: M 2.5 x 0.45
Signal pitch:	0.4 µm
Cable length:	2 m
Power supply:	5 V (4.5 V to 5.2 V), 80 mA max.
Max. response speed:	1500mm/s
Output signal:	90° phase difference, differential square wave (RS-422A equivalent) minimum edge distance 500 ns (0.1 µm type), 250 ns (0.1 and 0.5 µm type)
Environmental conditions:	0° C to 50° C (20% to 80% rel. humidity, no condensation) °C
Bearing type:	Linear ball bearing
