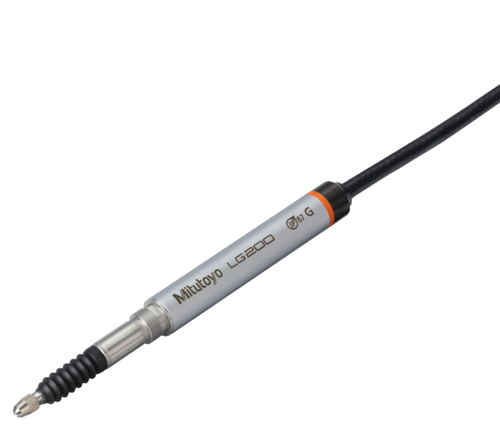

Name: Linear Gauge LG200-0110 542-188
Brand: Mitutoyo
SKU: 542-188
Price: 729.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

This slim type linear gauge allows you to meet a variety of measurement needs.

Differential square wave signal output enables use for a wide range of applications.
Due to its compact design, you can install it even where space is restricted.
Its photoelectric scale delivers high precision across the entire measuring range.
Extremely long-lasting due to linear ball-bearings in the spindle unit.
Perfect for use in tough environments, they come with a high IP class of IP67G.
Ideal for in-line measurement and embedded in automatic machines.

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Experienced engineers helping you select the correct measuring solution.

✔️

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation, commissioning and operator training available.

🤝

Technical support, servicing, repairs and ongoing customer care.

Range:	0 - 10 mm
Accuracy:	(0,8 + L/50) µm L=measured length in mm
Measuring force:	0.8 N with spindle down, 0.75 N spindle horizontal, 0.7 N spindle upwards
Resolution:	0.0001 mm
Scale:	Photoelectric linear encoder
Stem ?:	8 mm
Contact point:	Ø 3 mm carbide ball, thread: M 2.5 x 0.45
Signal pitch:	0.4 µm
Cable length:	2 m
Power supply:	5 V (4.5 V to 5.2 V), 80 mA max.
Max. response speed:	400
Output signal:	90° phase difference, differential square wave (RS-422A equivalent) minimum edge distance 500 ns (0.1 µm type), 250 ns (0.1 and 0.5 µm type)
Environmental conditions:	0° C to 50° C (20% to 80% rel. humidity, no condensation) °C
Bearing type:	Linear ball bearing
