MitutoyoSKU: 518-351E-21
List price: £6,170.00 Offer price: £5,429.60 Excluding VAT

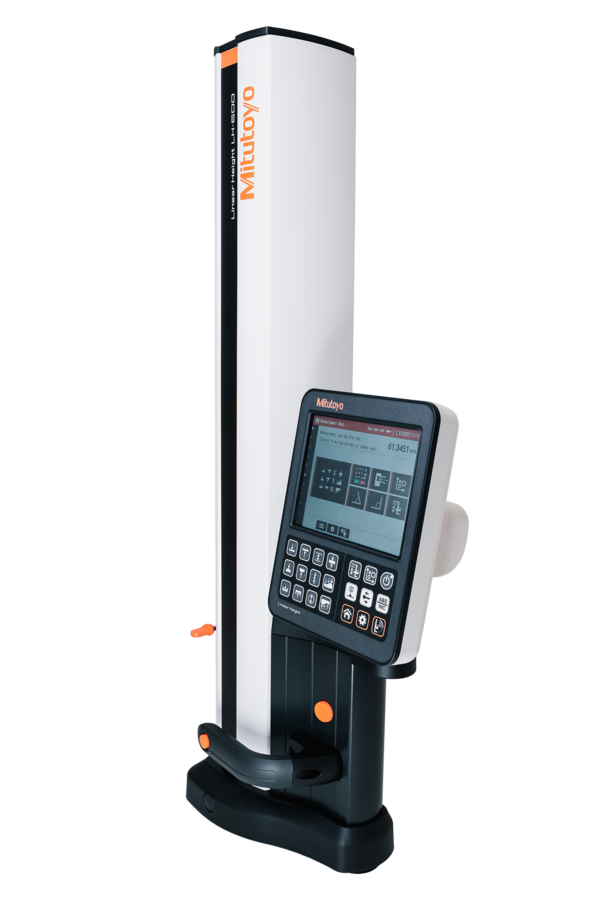

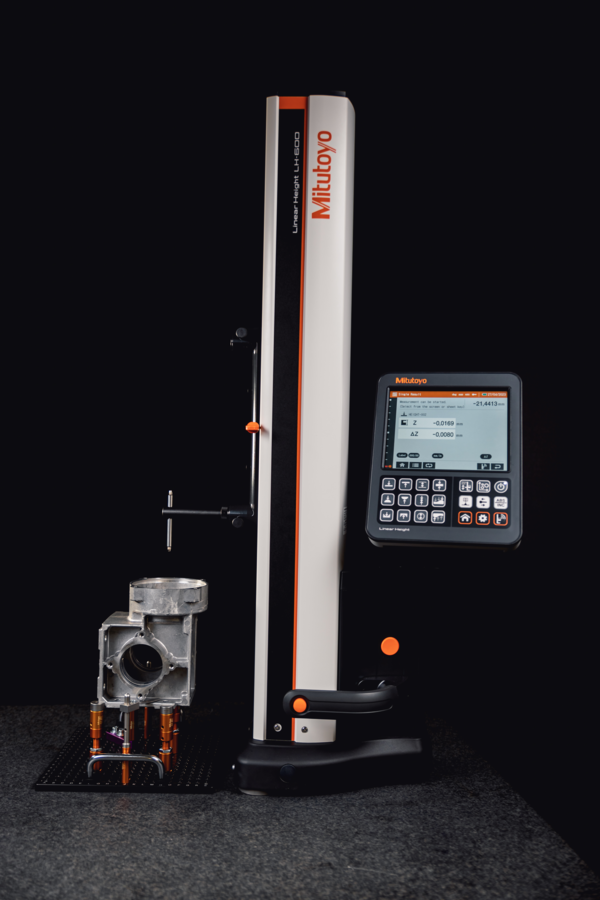

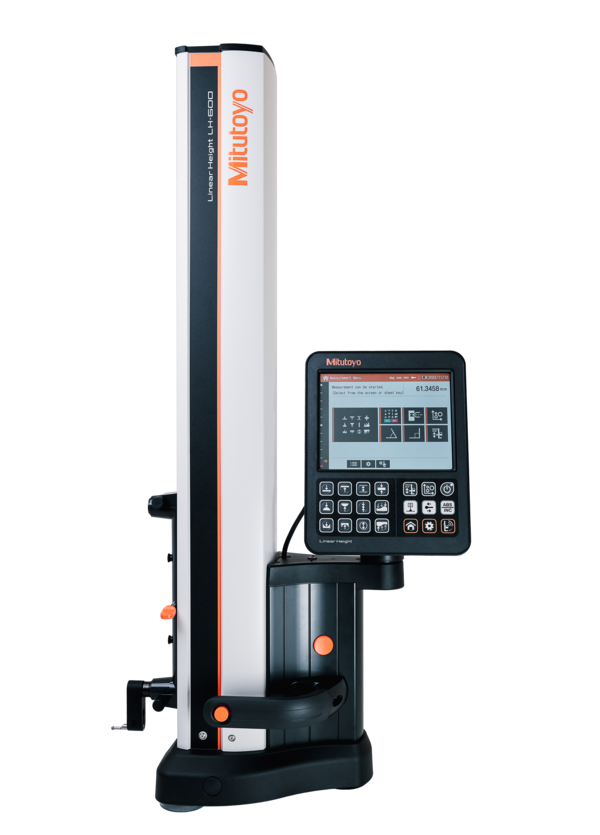

DescriptionThe Linear Heigth LH-600F/FG is a high-end 2D height-measuring instrument exhibiting the perfect combination of intuitive operation, multifunctionality and extraordinary accuracy.
  • Measurement operations can be performed by using the hybrid controller box with a touch screen and integrated sheet keyboard
  • It is capable of measuring with a digital step of 0.1 µm
  • Excellent accuracy of (1.1 + 0.6L/600) µm
  • Bidirectional Digimatic data output (Digimatic S1)
  • Measurement results can be printed from a receipt printer or Digimatic Printer (DP-1VA) and sent to a PC via wireless communication, USB cable or USB-Stick
  • Pneumatic drive mechanism
  • Automatic running of pre-learned part programs
  • Excellent visualization of GO/±NG tolerance comparisons
  • Independent operation with rechargeable battery
  • LH-Communication Tool Software available online free of charge
  • Dimension L 492 mm x W 238 mm x H 996 mm

*power cable (02ZAA021) needed, please order separately
Features
Digital/Analog:
Digital
Interface:

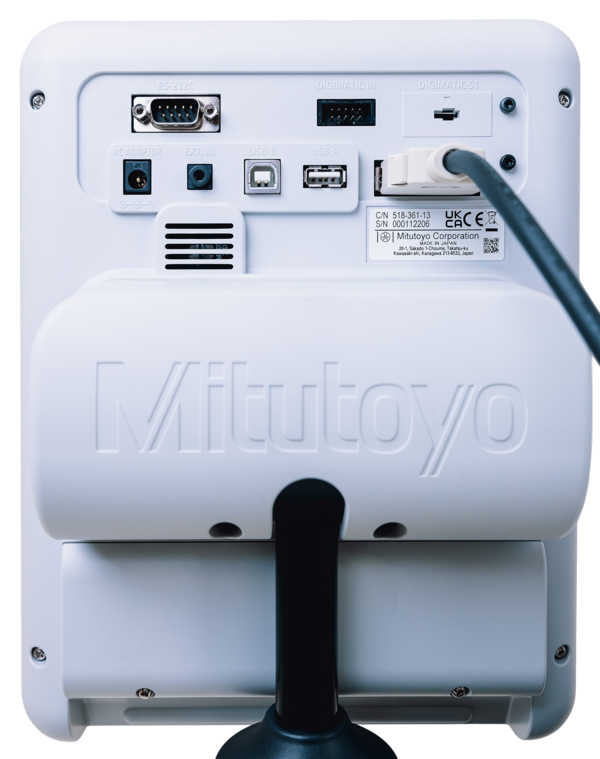

Digimatic S1 bidirectional (for wireless data transmission, Digimatic data transmission), RS-232C (for receipt printer), USB-B (for PC), UAB-A (for memory stick)
Range:
0-977 mm
Slider stroke:
600 mm
Digital step:
0,0001/ 0,001/ 0,01/ 0,1 mm or
0,000001/ 0,00001/ 0,0001/ 0,001"
Remarks:
With power grip
Accuracy:
±(1,1 + 6L/6000) µm
L = length (mm)
Perpendicularity:
5 µm (after compensation)
Straightness:
4 µm (mechanical)
Repeatability:
(2?) Plane : 0,4 µm
(2?) Bore : 0,9 µm
Air floating:
Full-floating (for moving), semi floating (for scanning measurement)
Mass:
26.6 kg
Balancing method:
Counterbalance
Drive method:
Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 stpes)/ manual
Sliding method:
Rolling bearing
Slider balance adjustment method:
Manual adjustment by adding/removing auxiliary weights
Scale:
Photoelectric INC encoder, STVC-20Z (8.1x10-6/K)
Display:

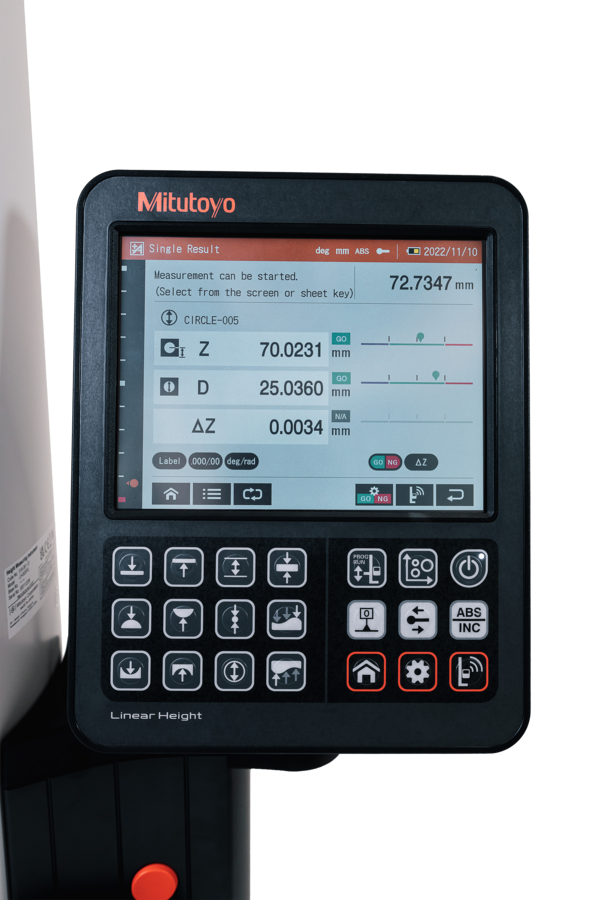

8.4" SVGA touch screen (800x600 dot, LED, with back lightning)
Language for display:
English / German / French / Spanish / Italian / Dutch / Portuguese / Swedish / Turkish / Czech / Hungarian / Slovenian / Polish / Russian / Romanian / Bulgarian / Finnish / Traditional Chinese / Simplified Chinese / Korean / Japanese
Adjustment range of display unit orientation:
Tilt direction: 0-40°, swivel direction: -30-180°
Power supply:
AC adapter 100-240V, 50/60Hz / battery (Ni-MH)
Battery operation time:
Approx. 4 hours
Battery charging time:
Appr. 3,5 h
Power consumption:
Max. 49.9 W
Number of stored part programs:
50
Preventive maintenance function:
Scale status notification, calibration status notification
Operating humidity:
20-80% RH (no condensation)
Airborne noise:
70dB(A)
Inch-Metric:
Metric/Inch
Delivered:
without power cable ( 02ZAA021 )

No technical information is currently available.

No application information is currently available.
