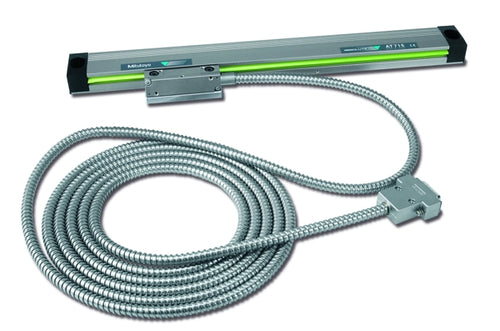

Linear Scale AT715 2500mm/100" Coolant Proof IP67 Absolute Linear Scales 539-863R

Name: Linear Scale AT715 2500mm/100" Coolant Proof IP67 Absolute Linear Scales 539-863R
Brand: Mitutoyo
SKU: 539-863R
Price: 1070.0 GBP
Availability: InStock

MitutoyoSKU: 539-863R

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£1,070.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This linear scale is based on electro magnetic induction principle thus offering you high enviroment protection IP level, in the mean time reference point is not necessary after each power on.

Only compatible with KA series display units.

Product Information
Part Number	539-863R
Accuracy	+/-.010mm
IP Rating	IP67
Type	AT715
Detection Method	Electromagnetic induction
Maximum Response Speed	50m/min

Measuring method:	Electromagnetic induction system
Accuracy:	100 to 500 mm ±5 µm 600 to 1800 mm ±7 µm 2000 to 3000 mm ±10 µm
Max. drive speed:	50 m/min
Signal period:	20 µm
Resolution:	0,001 / 0,005 (switchable via Counter)
Cable length:	3.5 m
