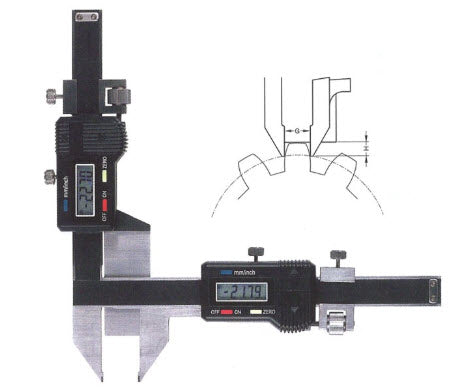

The Gear Tooth Caliper is used for the testing of gear teeth. The vertical scale measures the depth of teeth from the top to the pitch line, and the horizontal scale measures the thickness of teeth in the pitch line.
Features:
• Provides an LCD readout, true in/mm conversion, floating zero and complete portability

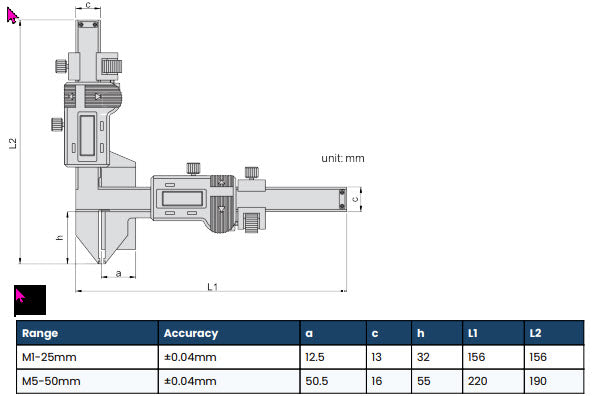

• Tooth thickness range (horizontal scale) is 0-1.56"/39.6mm
• Chordal thickness range (vertical scale) is 0-1.44"/36.7mm
• Resolution: 0.0005"/0.01mm
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
