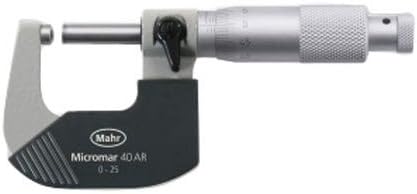

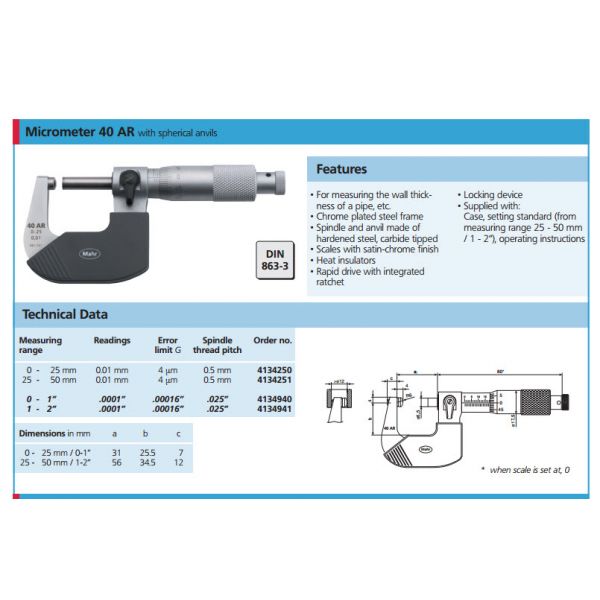

The Mahr 4134250 Ball Micrometer has the following specifications:
- Measuring Range: 0-25mm
- Error limit G: 4µm
- Readings: 0.01mm
- Spindle thread pitch: 0.5mm
Features:
- For measuring the wall thickness of a pipe, etc.
- Hard lacquered steel frame
- Spindle and anvil made of hardened steel carbide tipped
- Scales with satin-chrome finish
- Heat insulators
- Rapid drive with integrated ratchet
- Locking device
- Supplied with: Case, setting standard (from measuring range 25-50mm / 1-2?), operating instruction
