- Reduced measuring surfaces ?3mm.
- Operating and display units antiglare with satin chrome finish.
- Hard lacquered steel frame.
- Spindle and anvil made of hardened steel, carbide tipped.
- Heat insulators.
- Rapid drive with integrated ratchet.
- Locking device.
- Scope of delivery: Instruction manual, Setting standard (from measuring range 25 - 50mm), Case.

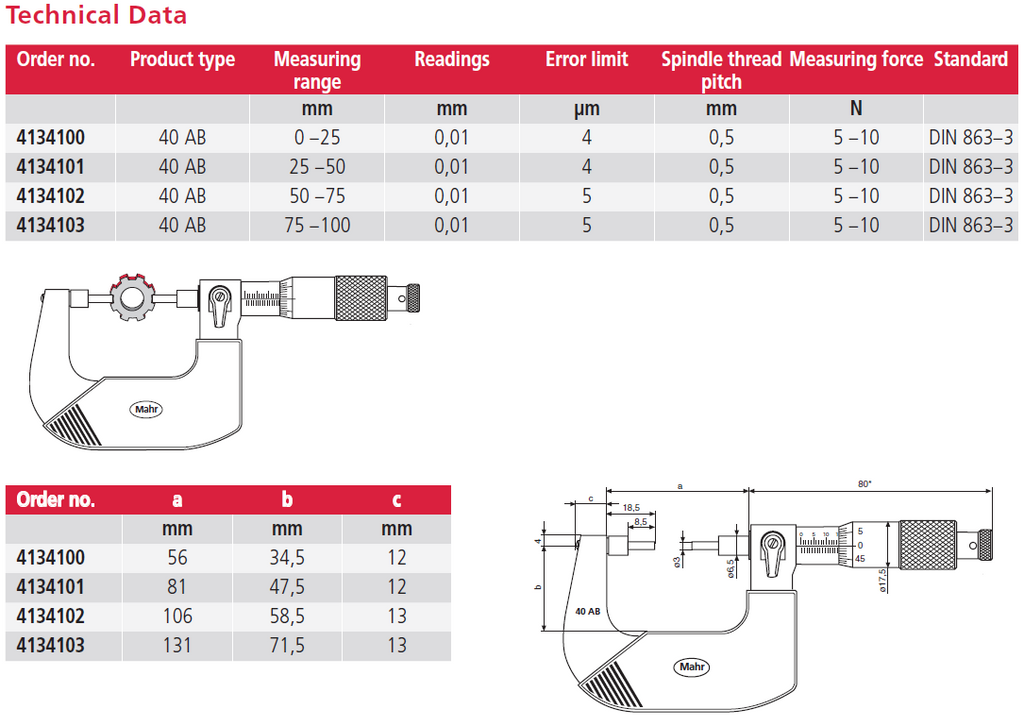

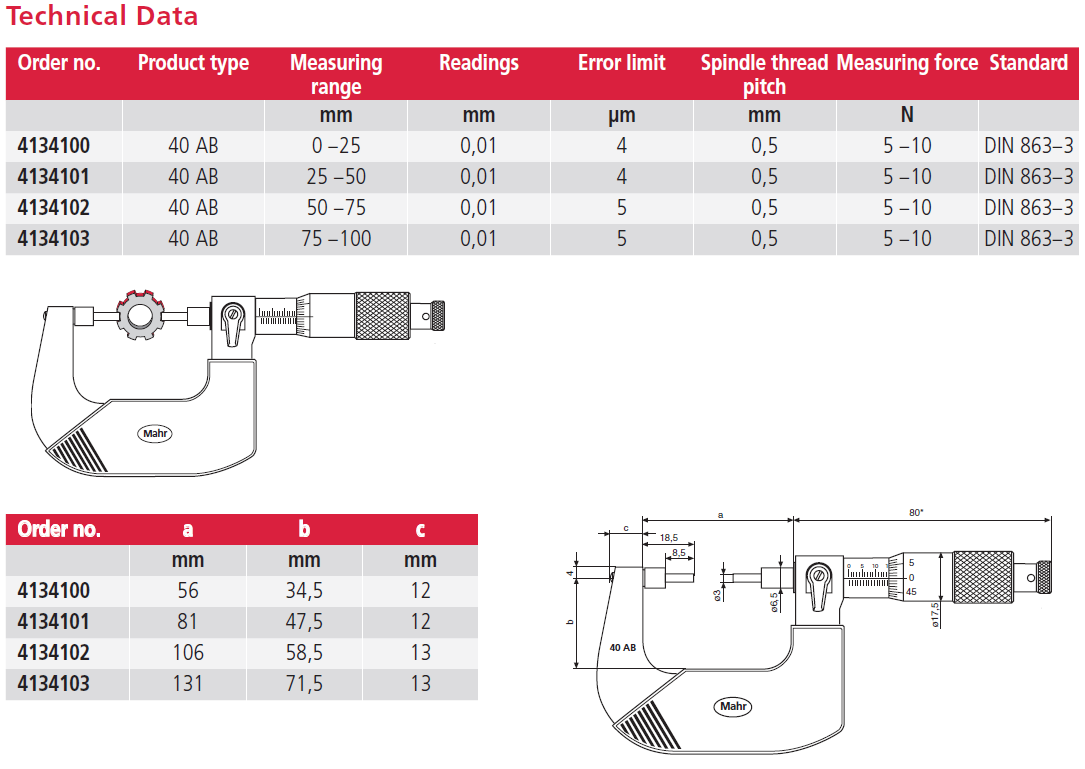

| Micrometer Range | 25-50mm |
|---|---|
| Type of Micrometer | Mechanical Outside Micrometer |
| Select Micrometer Type | Spline Mechanical |
| Graduation | .01mm |
| Digital, Non-Digital | Non-Digital |
| Micrometer Series | 40AB |
| Micrometer Accuracy | .004mm |
| Ratchet Type | Ratchet Stop |

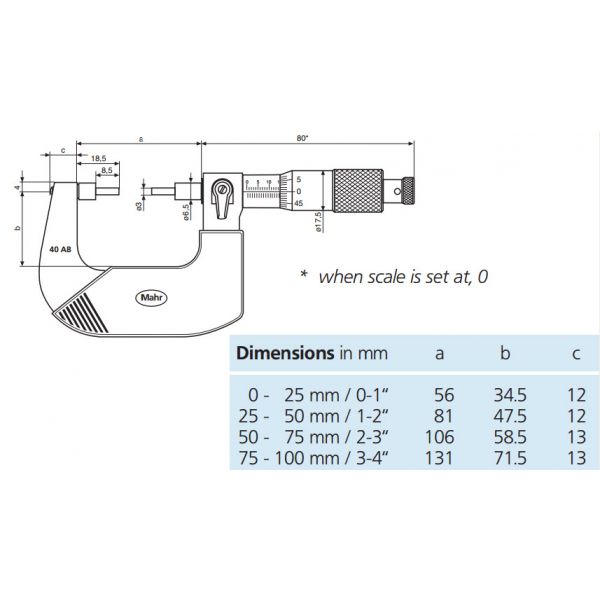

| Additional Details | Code=4134101, Anvils=3mm, Length= 8.5mm |
No technical information is currently available.
No application information is currently available.
