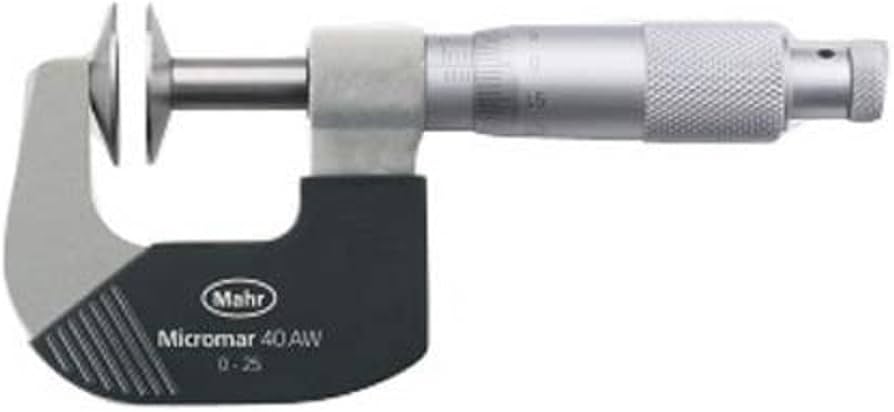

Mahr 40AW Mechanical Micrometers Micromar Non Rotating Disc Micrometer, Range 0-25mm x .01mm 4134300

Roll over image to zoom in Click on image to zoom

Mahr 40AW Mechanical Micrometers Micromar Non Rotating Disc Micrometer, Range 0-25mm x .01mm 4134300

Name: Mahr 40AW Mechanical Micrometers Micromar Non Rotating Disc Micrometer, Range 0-25mm x .01mm 4134300
Brand: Mahr
SKU: 4134300
Price: 175.0 GBP
Availability: InStock

MahrSKU: 4134300

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£175.00 £280.00

Quantity:

All prices exclude VAT, which will be added at checkout.

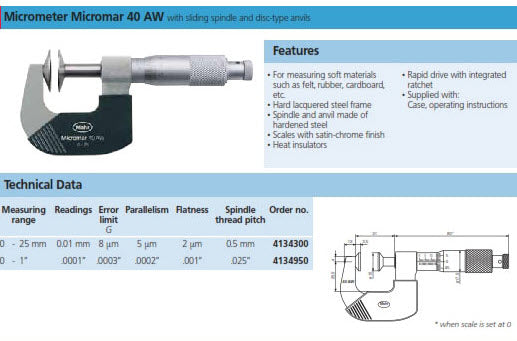

The Mahr 4134300 Vernier Disc Micrometer has the following specifications:

Measuring Range: 0-25mm
Error limit : 8µm
Readings: 0.01mm
Spindle thread pitch: 0.5mm
Parallelism: 5µm
Flatness: 2µm

Features:

For measuring soft materials such as felt, rubber, cardboard, etc.
Hard lacquered steel frame
Spindle and anvil made of hardened steel carbide tipped
Scales with satin-chrome finish
Heat insulators
Rapid drive with integrated ratchet
Supplied with: Case, operating instructions

Product Information
Part Number	4134300
Measuring Ranges	25-50mm
Graduation	.01mm
Accuracy	+/-.008mm
Unit of Measurement	Metric
Type	Disc
Flatness	2µm
Parallelism	5µm
Manufacturer	Mahr
