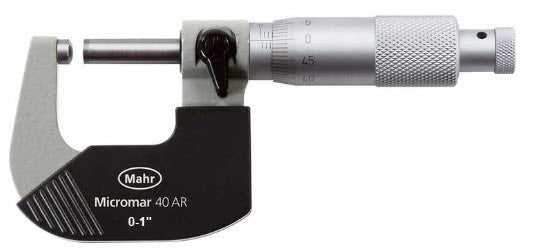

4134940 Mahr Vernier Ball Micrometer: 0-1?

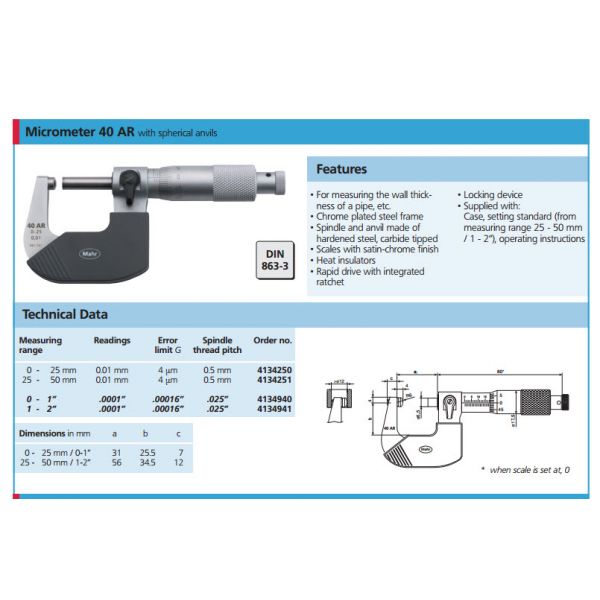

The Mahr 4134940 Vernier Ball Micrometer has the following specifications:
- Measuring Range: 0-1?
- Error limit G: .00016?
- Readings: .0001?
- Spindle thread pitch: .025?
Features:
- For measuring the wall thickness of a pipe, etc.
- Hard lacquered steel frame
- Spindle and anvil made of hardened steel carbide tipped
- Scales with satin-chrome finish
- Heat insulators
- Rapid drive with integrated ratchet
- Locking device
