Chrome plated steel frame • Maximum stability • Spindle is hardened throughout and ground • Disc-type anvils are hardened and lapped
• Scale have a satin chrome finish
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device
• Supplied with:
Application
For measurements of
• Tooth spans of module 0.8 as indirect determination of tooth thickness on spur gears with straight and helical teeth
• Shoulders on shafts
• Undercut dimensions
• Registers
• Soft materials such as rubber, cardboard, felt, etc.
• Scale have a satin chrome finish
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device
• Supplied with:
Application
For measurements of
• Tooth spans of module 0.8 as indirect determination of tooth thickness on spur gears with straight and helical teeth
• Shoulders on shafts
• Undercut dimensions
• Registers
• Soft materials such as rubber, cardboard, felt, etc.

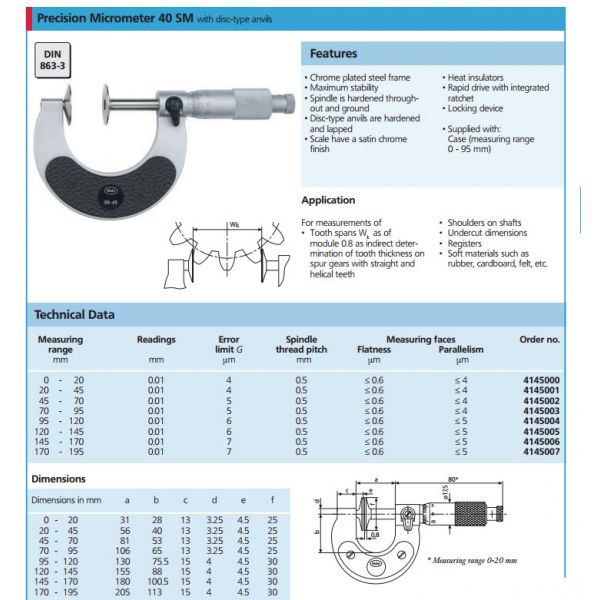

Mahr 4145000 Mechanical Micrometers

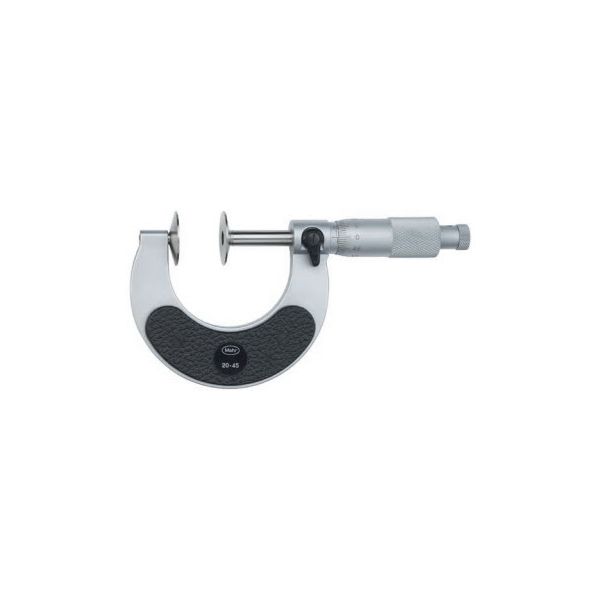

40SM Micrometer Rotating Disc Micrometer
Range 0-20mm x .01mm
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
