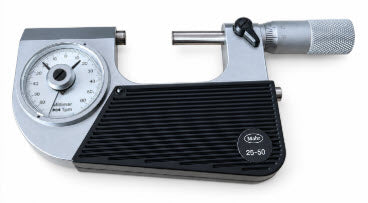

Mahr Indicating Micrometers with integrated Dial Comparator 40F 1-2" 4150901

The Mahr 4150900 Micrometer W/ Dial Comparator has the following specifications:

• Measuring Range: 1-2″
• Measuring Force: 9N
• Retraction: .04″
• Measuring Faces Flatness: .00001″
• Measuring Faces Parallelism: .00005″

Applications:

• For rapid measurements of diameters of cylindrical parts (shafts, bolts and shanks)
• Measurements of thickness and length
• Recommended for standard precision parts

Features:

• Chrome plated steel frame with heat insulators
• Maximum stability
• Retraction of the movable anvil and carbide-tipped measuring faces ensures maximum wear resistance
• Longer service life due to the ceramic measuring faces (40 FC)
• Measuring spindle made of stainless steel, hardened throughout and ground, lockable
• Scales with satin-chrome finish
• Constant measuring force
• Dial Comparator is integrated in frame
• Adjustable tolerance markers
• Supplied with: Case
