Mahr 4170561 Marameter Ball Contact, 5mm Diameter, 9mm Height

Roll over image to zoom in Click on image to zoom

Mahr 4170561 Marameter Ball Contact, 5mm Diameter, 9mm Height

Name: Mahr 4170561 Marameter Ball Contact, 5mm Diameter, 9mm Height
Brand: Mahr
SKU: 4170561
Price: 130.0 GBP
Availability: InStock

MahrSKU: 4170561

All prices exclude VAT, which will be added at checkout.

Price:

£130.00

Quantity:

For gear measurement and for special tasks
Carbide measuring balls
Cylindrical mounting shank with circlip for mounting in the mounting bore of the micrometer or indicating snap gage

Description:

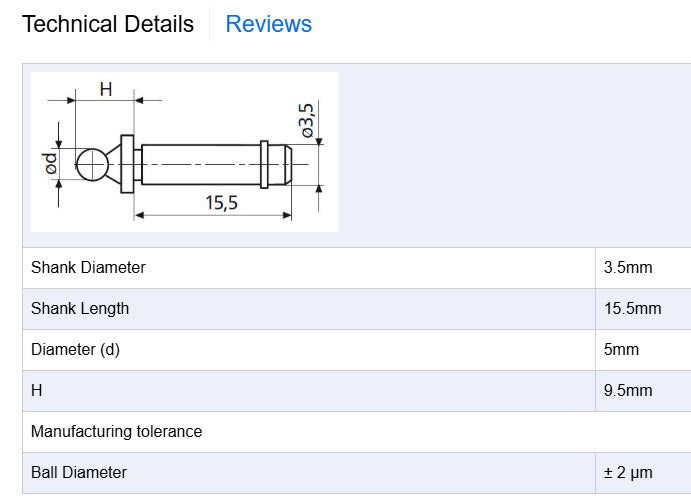

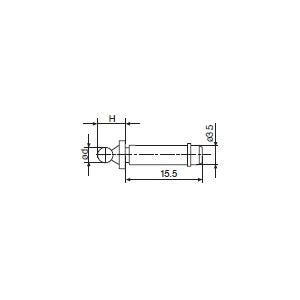

Ball measuring insert, measuring contact ball diameter mm 5 mm , L = 15.5mm, ø = 3.5 mm

Feature:

Calibration type: Uncalibrated
Product group name: Marameter
Product name: Ball measuring insert
Material Measuring surface: Carbide
Thread pitch in mm (proxy): false
Thread pitch in TPI (proxy): false
Product group name: Indicating measuring devices
Mounting hole: 3,5
Length (mm): 15.5 mm
Dimension H: 9.5 mm
Dimension h in mm: 9.5 mm
Dimension d in mm: 5 mm
Measuring contact ball diameter mm: 5 mm
Manufacturing tolerance +/-: 2 µm

Product Information
Part Number	4170561
Stem Diameter	8mm
