Mahr 4170562 Marameter Ball Contact, BALL ANVIL FOR 40 Z/852 5.5MM

Roll over image to zoom in Click on image to zoom

Mahr 4170562 Marameter Ball Contact, BALL ANVIL FOR 40 Z/852 5.5MM

Name: Mahr 4170562 Marameter Ball Contact, BALL ANVIL FOR 40 Z/852 5.5MM
Brand: Mahr
SKU: 4170562
Price: 150.0 GBP
Availability: InStock

MahrSKU: 4170562

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£150.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Version:
- For gear measurement and for special tasks
- Carbide measuring balls
- Cylindrical mounting shank with circlip for mounting in the mounting bore of the micrometer or indicating snap gage
Description:

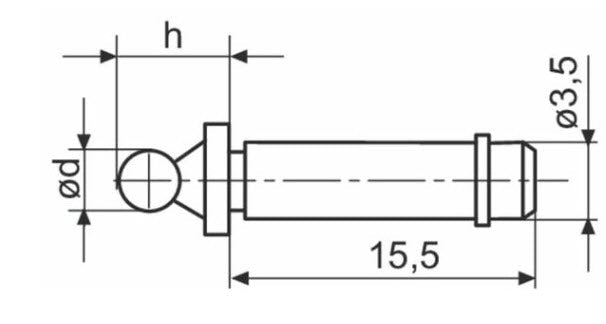

- Ball measuring insert, measuring contact ball diameter mm 5.5 mm , L = 15.5mm, ø = 3.5 mm
Feature:
- Calibration type: Uncalibrated
- Product group name: Marameter
- Product name: Ball measuring insert
- Material Measuring surface: Carbide
- Thread pitch in mm (proxy): false
- Thread pitch in TPI (proxy): false
- Product group name: Indicating measuring devices
- Mounting hole: 3,5
- Length (mm): 15.5 mm
- Dimension H: 10 mm
- Dimension h in mm: 10 mm
- Dimension d in mm: 5.5 mm
- Measuring contact ball diameter mm: 5.5 mm
- Manufacturing tolerance +/-: 2 µm

Product Information
Part Number	4170562
Measuring Ranges	25mm/1"
Resolution	.001mm/.00005"
Accuracy	+/-.003mm/.00015"
Unit of Measurement	Metric Inch
Data Output	OPTO RS232C
Measuring Force	0.8-2N
Stem Diameter	8mm
Manufacturer	Mahr
