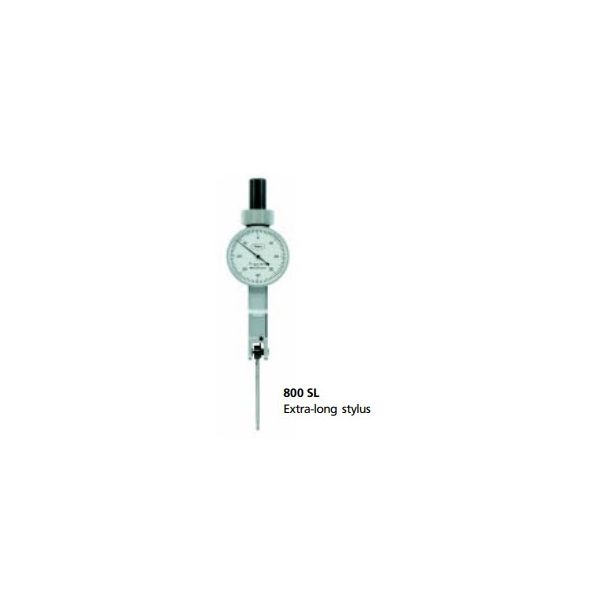

Mahr 4306100 Lever Indicator Range: .8mm graduation .01mm long stylus 36mm Face diam 27mm, 800SL

Roll over image to zoom in Click on image to zoom

Mahr 4306100 Lever Indicator Range: .8mm graduation .01mm long stylus 36mm Face diam 27mm, 800SL

Name: Mahr 4306100 Lever Indicator Range: .8mm graduation .01mm long stylus 36mm Face diam 27mm, 800SL
Brand: Mahr
SKU: 4306100
Price: 85.0 GBP
Availability: InStock

MahrSKU: 4306100

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£85.00 £155.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Features
technical data
Functions: ON/OFF
RESET (Set display to zero)
mm/inch
MAX/MIN memory
MAX-MIN ideal for testing
concentricity and flatness
Auto-OFF
- Inductive measuring system battery lifespan ca. 2 years
- MarConnect data output hoose alternatively: USB OPTO RS232C
- Operating unit is protected against coolants and lubricants protection class IP65
- Combined analog and digital display
- Operating and display unit (bezel) can be rotated through 360

Mahr 4306100 Lever Indicator Range: .8mm graduation .01mm long stylus 36mm Face diam 27mm

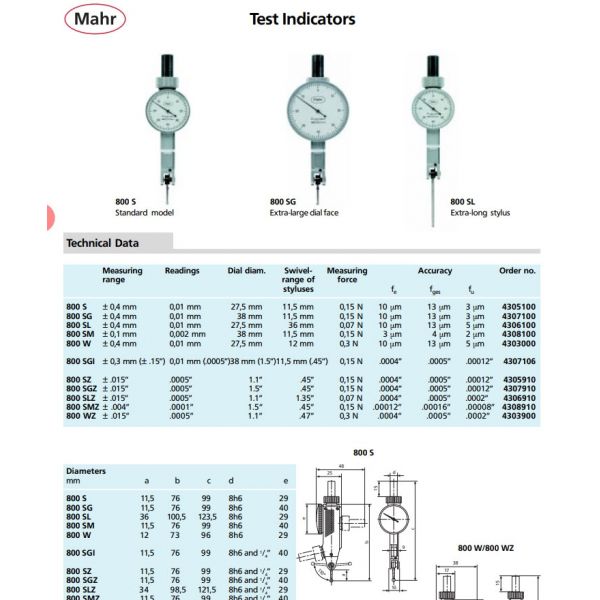

Product Information
Part Number	4306100
Measuring Ranges	0.8mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	.01mm
Unit of Measurement	Metric
Measuring Force	0.07N
Type	Horizontal
Tip Diameter Ø	2mm
Length	36mm
Repeatability	3µm
Dial Reading	40-0-40
Dial Face Size Ø	27.5mm
Hysteresis	.003mm
Stem Diameter	8mm
Manufacturer	Mahr
