Millimess 1004
Art. no. 4333000

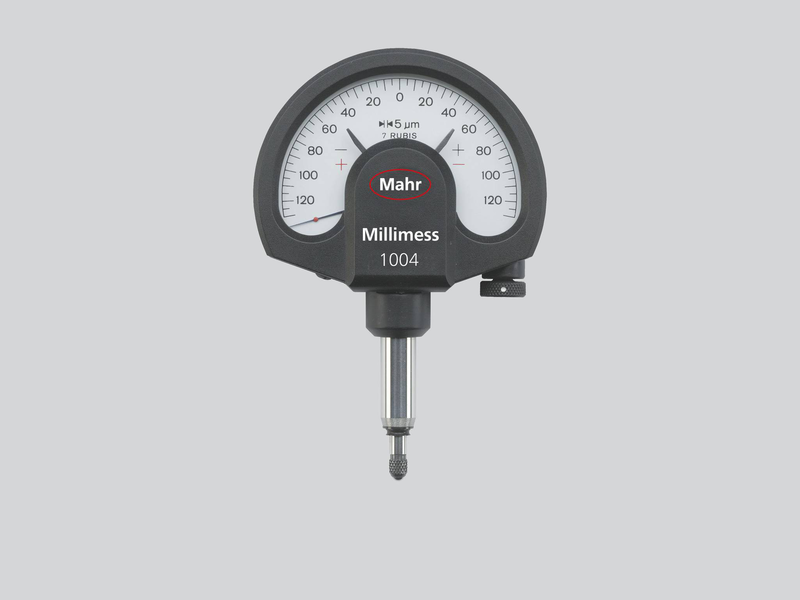

Mechanical dial comparator Millimess 1004
Factory standard dial colour: White
Measuring range mm: ± 130 µm
Graduation value µm: 5 µm
Measuring force: 1 N
Package contains: test certificate, case
- Large, high contrast dial face
- Adjustable tolerance markers
- Lockable fine adjustment screw
- Shockproof movement
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Resistant to lateral forces (side play) acting on the measuring spindle
- Maximum sensitivity and accuracy are ensured by the jewelled movement in conjunction with the precision gears and pinions
- Box type protective housing
- Constant measuring force
- Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
| Product type | 1004 |
| Measuring range mm | ± 0.13 |
| Graduation value µm | 5 µm |
| Error limit Ge (µm) | 3.5 µm |
| Error limit Gges (µm) | 4 µm |
| Error limit Gt (µm) | 3 µm |
| Measuring value hysteresis fu (µm) | 1 µm |
| Repeatability fw (µm) | 1 µm |
| Measuring force | 1 N |
| Figur on dial face | 130-0-130 |
| Dial color | White |
| Scale diameter | 50 mm |
