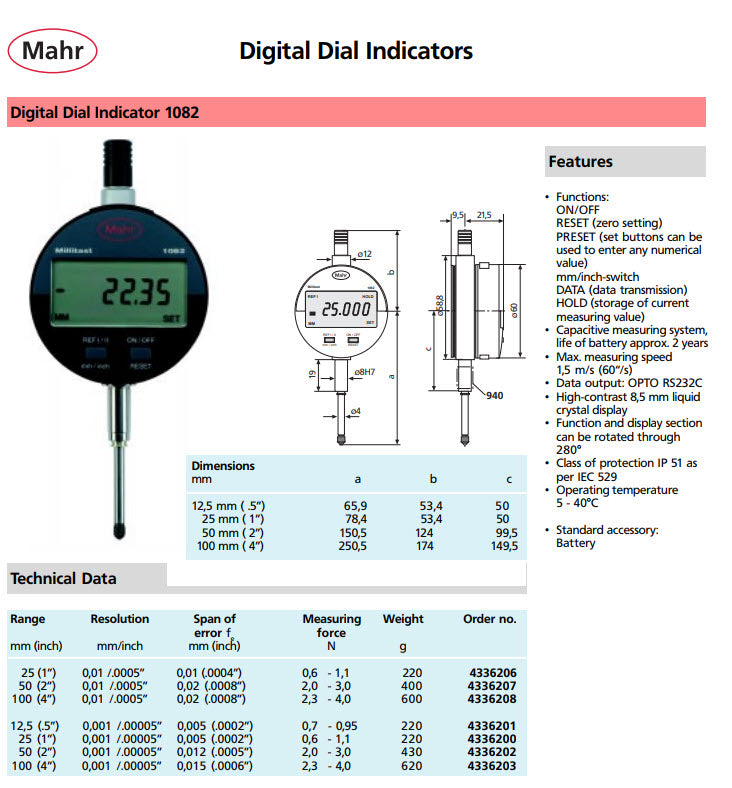

Functions: ON/OFF
RESET (zero setting)
PRESET (set buttons can be used to enter any numerical value)
mm/inch-switch
DATA (data transmission)
HOLD (storage of current measuring value)
• Capacitive measuring system, life of battery approx. 2 years
• Max. measuring speed 1,5 m/s (60“/s)
• Data output: OPTO RS232C
• High-contrast 8,5 mm liquid crystal display
• Function and display section can be rotated through 280°
• Class of protection IP 52 as per IEC 529
• Operating temperatur5 - 40°C
| Style of Indicator | Standard Type Digital |
|---|---|
| Measurement units | Inch/Metric |
| IP Rating | IP52 |
| Mounting Diameter | 8mm |
| Measuring Range | 1/2"/12.5mm |
| Resolution | .00005"/.001mm |
| SPC Output | Yes |
| Accuracy | .0002"/.005mm |
| Back | Flat |
| Digital, Non-Digital | Digital |
