Functions:
ON/OFF
RESET (Set display to zero)
mm/inch
Reversal of the counting
direction
PRESET (Allows the entry of any value using set buttons)
TOL (Enter tolerance limit values)
ABS (Display can be set to zero, without losing the reference to the Preset value)
<0> (Tolerance GO / NO GO display mode)
DATA (when connected with a data connection cable)
Factor (adjustable)
• Immediate measurement due to the Reference system
• Individual buttons can be locked - Lock Function
• Operating and display unit (bezel) can be rotated 280°
• High contrast LCD with 11 mm high digits
• Inductive measuring system, battery life ca. 2000 hrs.
• Maximum measuring speed 1.5 m/s(60”/s)
• Lifter protection cap on the measuring spindle
• MarConnect data output: choose either USB OPTO RS232C Digimatic
• Operating temperature 10 - 40°C
• Class of protection IP42 in accordance to IEC 60529 Supplied with: Battery, operating instructions
ON/OFF
RESET (Set display to zero)
mm/inch
Reversal of the counting
direction
PRESET (Allows the entry of any value using set buttons)
TOL (Enter tolerance limit values)
ABS (Display can be set to zero, without losing the reference to the Preset value)
<0> (Tolerance GO / NO GO display mode)
DATA (when connected with a data connection cable)
Factor (adjustable)
• Immediate measurement due to the Reference system
• Individual buttons can be locked - Lock Function
• Operating and display unit (bezel) can be rotated 280°
• High contrast LCD with 11 mm high digits
• Inductive measuring system, battery life ca. 2000 hrs.
• Maximum measuring speed 1.5 m/s(60”/s)
• Lifter protection cap on the measuring spindle
• MarConnect data output: choose either USB OPTO RS232C Digimatic
• Operating temperature 10 - 40°C
• Class of protection IP42 in accordance to IEC 60529 Supplied with: Battery, operating instructions

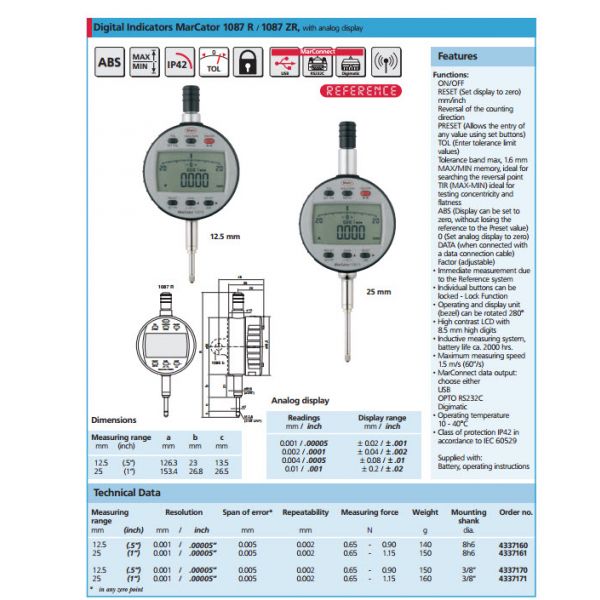

Mahr 4337160 Digital Indicators MarCator 1087 R
| SKU | 4337160 |
|---|---|
| Weight (in lbs) | 1.2 |
| Manufacturer | MahrFederal |
| Gage Type | Indicator |
| Gage Cable | C-8501-06 |
| Measuring range | 0.5“/12.5mm |
| Resolution | .00005“/0.001mm |
| Accuracy | 0.005mm |
| Remarks | Flat Back |
No technical information is currently available.
No application information is currently available.
