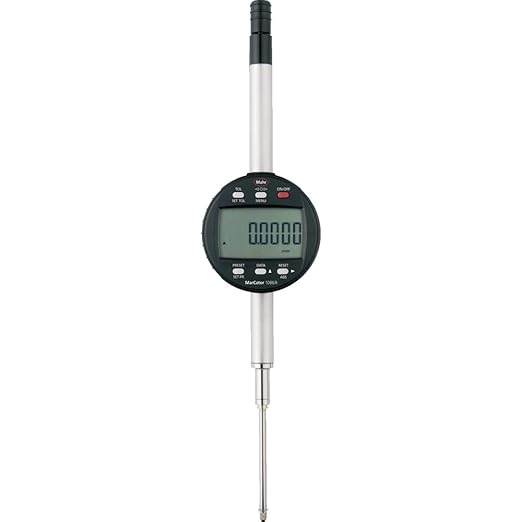

Mahr 4337702 1086 R Digital Indicator Range 2"-50mm; Resolution .00005"-0.001mm; 8mm stem diameter. With the large display and the integrated tolerance. IP42 protection rating

Product Description

4337622 Mahr MarCator Digital Indicator: 0-50mm /2″

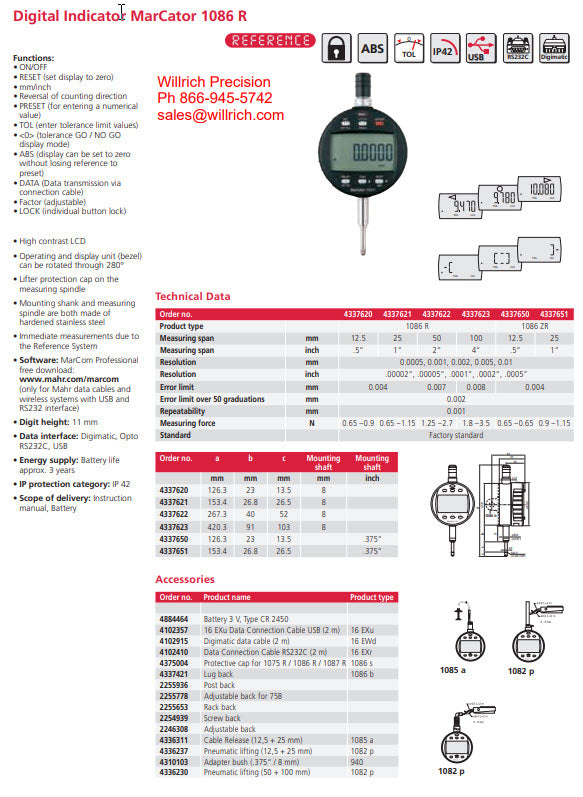

The Mahr 4337702 MarCator Digital Indicator 1086 R/1086 ZR has the following specifications:

• Measuring Range: 0-50mm /2″
• Resolution switchable: 0.0005 / 0.001 / 0.002/ 0.005 / 0.01 mm
• Span of error: 0.008mm
• Measuring force: 1.25-2.70N
• Weight: 190G
• Repeatability: 0.002mm

Features:

• Integrated wireless data transmission.
• Immediate measurement due to the reference system.
• Individual button can be locked – lock functions.
• Operating and display unit can be rotated to 280 degree.
• High contrast lcd with 11mm high digits.
• Operating temperature approx 3 years(2000 work hrs/year).
• Maximum measuring speed 1.5m/s.
• Marconnect data output: choose either USB, OPTO TS232C, digimatic or integrated wireless.
• Operating temperature 10-40 degree c.
• Class of protection IP42 in accordance to IEC 60523.
• Supplied with: battery, operating instructions.

Functions::

• ON/OFF,RESET (Set display to zero).
• mm/inch, Reversal for counting direction.
• TOl(enter tolerance limit values).
• PRESET (Allows the entry of any value using set button).
• DATA (When connected with data connection cable), factor (adjustable).
• ABS (display can be set to zero, without losing the reference to present value).
