Mahr 4429010 Mahr 1D and 2D Height Gauges. Description : Mahr 2-D Height Gauge Measuring Range : 0-350mm/0-14" Application Range : 520mm/20.47" Accuracy : 1.8 +L/600 ) L in mm Motorized measuring carriage

• Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head
• Dynamic probing system enabling high repeatability
• Air bearings system for light and smooth movement
• Precise measuring head on stainless steel guideways
• Motorized measuring carriage simplifies measurement runs
• Probe constant remains after the instrument is switched off
• Integrated rechargeable battery with a long operating time span for mains independent measurement
• Temperature compensation with an integrated temperature sensor

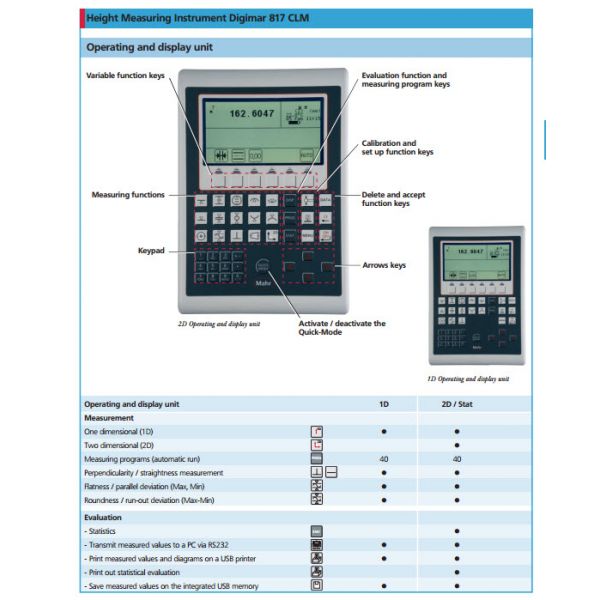

Operating and Display Unit:

• Large and clearly defined function keys
• Easy to read background lit graphic LCD display
• Operator guidance with self-explanatory icons / pictograms
• Operator prompts and menus are available in several languages
• Possible to set additional zero points on a work piece
• RS232 and / or USB data output for further data processing
• Save measured data on the integrated USB memory or on a USB stick
• USB interface to connect a compatible USB printer
• Additional measuring instruments with Opto RS232-interface can be connected
• Secure the future due to software update potential
• Automatic stand-by switch mode
• Selectable Auto-off function, without loss of measured values
