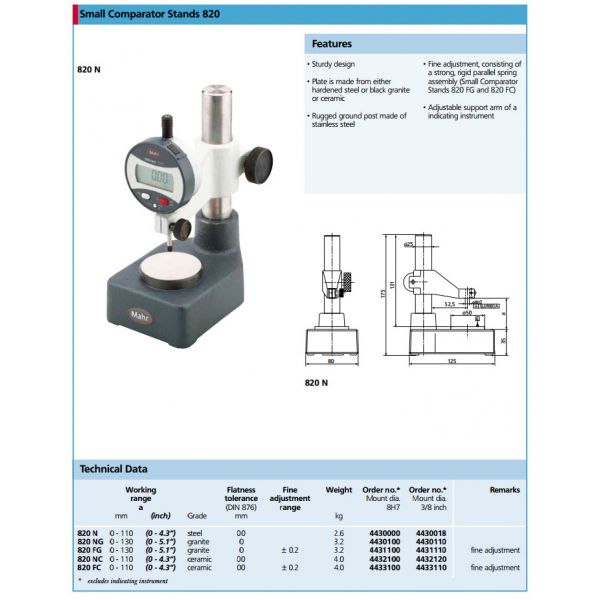

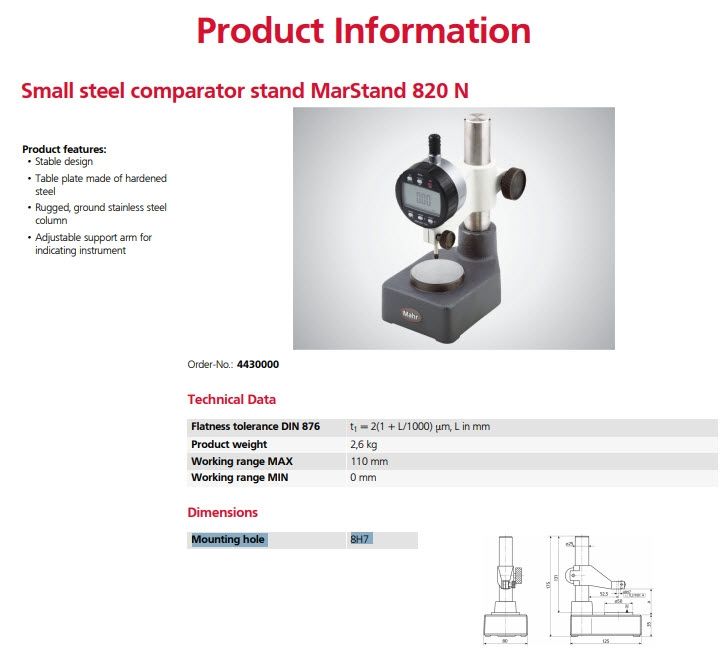

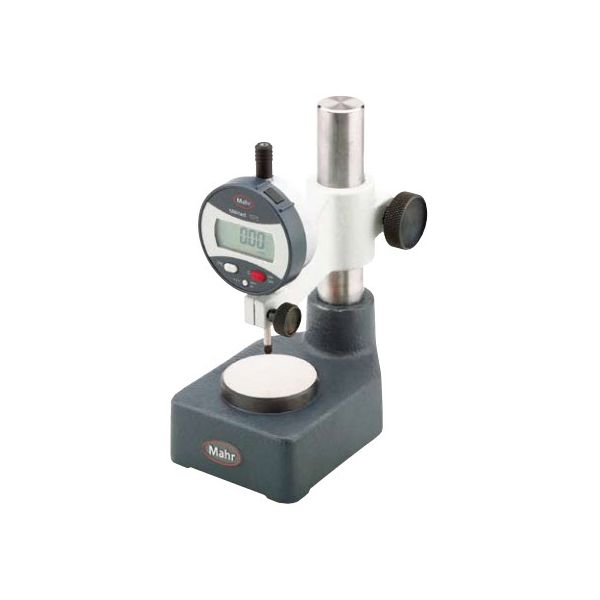

The Mahr 4430000 Small Comparator Stand has the following specifications:
- Working Range: 0-110mm/0-4.3?
- Flatness Tolerance: 00mm
- Grade: Steel
- Mount Dia.: 8H7
- Fine Adjustment Range: 0.2mm
- Weight: 2.6Kg
Features:
- Sturdy design
- Plate is made from either hardened steel or black granite or ceramic
- Rugged ground post made of stainless steel
- Fine adjustment, consisting of a strong, rigid parallel spring assembly (Small Comparator Stands 820 F6 and 820 FC)
- Adjustable support arm for a indicating instrument
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
