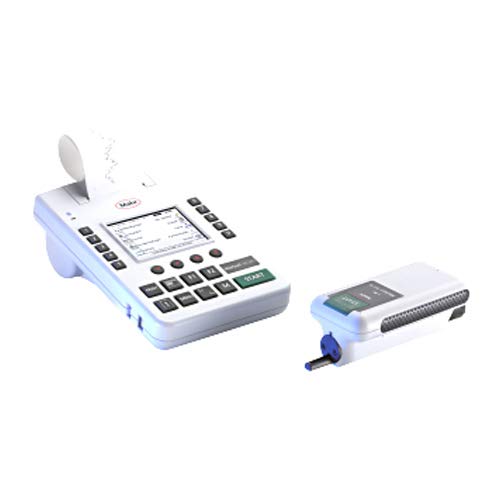

Mahr 6910401 MarSurf M 300 Mobile Roughness Measuring Instrument, 2 µm

Mar Surf M 300, the first portable roughness measuring unit with the option of wireless (Bluetooth) connection to the drive unit. Bluetooth wireless connection. Easy to use, with high-resolution colour display and ATM-style user guidance. Integrated standard in drive unit. Automatic profile detection and corresponding selection of filters and traversing length conforming to standards. Integrated memory for the results of up to 40,000 measurements and 30 profiles. Integrated thermal printer with high print quality. Data transfer of results and profiles via USB interface to your PC. Evaluation of most common parameters as well as characteristic curves, parameter lists (e.g. material ratio curve). Tolerance monitoring. Printing of R-profile (ISO/ASME/JIS), P-profile (MOTIF), material ratio curve, measuring record. Setting of asymmetrical intersection lines for peak count calculation. Measuring units (µm/µinch) and standards (ISO/JIS/ASME/MOTIF) are selectable. Individual sampling lengths and short cut-off can be selected. Lock for instrument settings. Built-in rechargeable battery with power management. Suitable for use with stationary measuring station. For use with PHT probe range. Mar Surf PS1/M 300 Explorer software for recording measurements.
