Mahr Digimar 816 CLT Height Gauge | 0-350mm/0-14" ; 0-600mm/0-24" | Resolution 0.0001mm, 0.0005mm, 0.001mm, 0.005mm, 0.01mm

Roll over image to zoom in Click on image to zoom

Mahr Digimar 816 CLT Height Gauge | 0-350mm/0-14" ; 0-600mm/0-24" | Resolution 0.0001mm, 0.0005mm, 0.001mm, 0.005mm, 0.01mm

Name: Mahr Digimar 816 CLT Height Gauge | 0-350mm/0-14" ; 0-600mm/0-24" | Resolution 0.0001mm, 0.0005mm, 0.001mm, 0.005mm, 0.01mm
Brand: Mahr
SKU: 4429630
Price: 4800.0 GBP
Availability: InStock

MahrSKU: 4429630

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£4,800.00 £5,709.00

Quantity:

All prices exclude VAT, which will be added at checkout.

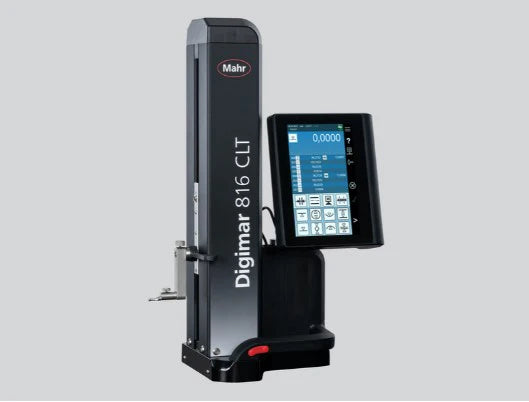

Height measuring instrument Digimar 816 CLT
Measuring range mm: 0-350 mm, 0-600mm
Resolution: 0.0001 mm, 0.0005 mm, 0.001 mm, 0.005 mm, 0.01 mm / 0.00001 inch, 0.00005 inch, 0.0001 inch, 0.0005 inch, 0.001 inch
Error limit µm: (1.8 + L/600) L in mm
Data interface: 3x USB 2.0, wireless
Package contains: height measuring instrument incl. operating and display unit, carrier 817h1, probe K6/51, setting block 817 eb, USB cable, instruction manual, power source, protection cover, Calibration certificate

Measuring range mm	0-350mm, 0-600mm
Measuring range	0-14", 0-24"
Resolution	0.0001 mm , 0.0005 mm , 0.001 mm , 0.005 mm , 0.01 mm
Resolution	0.00001 inch , 0.00005 inch , 0.0001 inch , 0.0005 inch , 0.001 inch
Error limit	(2.0 + L/400) L in mm
Repeatability planes	1 µm
Repeatability bores	2 µm
Perpendicularity error in µm	5 µm
Data interface	3x USB 2.0 , wireless
Product weight	22 kg

Product Information
Part Number	4429630
Measuring Ranges	0-350mm
Resolution	0.0001mm(0.00001")
Data Output	Yes
