Micromar 40 EWRi-V
Art. no. 4157150
- Universal adjustment to different workpiece ad measurement situations using individual interchangeable measuring anvils.
- Thread flanks and spherical measuring anvils
- IP65 Waterproof & Dustproof
- Supplied with interchangeable anvils
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- With mounting bores for measuring anvils with a shaft Ø 3.5 mm
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
- Bidirectional data interface (external output and input option of characteristic values as well as setting of individual lock functions by MarCom software

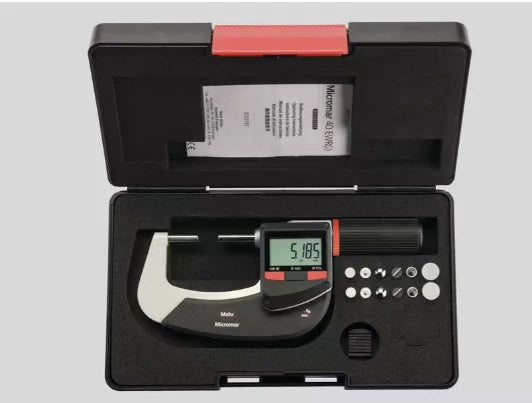

- Package contents: 1 pair each of the following measuring anvils: 40 Ef flat Ø 6.5mm, 40 Ea offset Ø 2 x 4mm, 40 Et plate Ø 11.3mm, 40 Er spherical R=5mm, 40 Ep tapered 60 deg Ø 0.3-5.5mm, 40 Es blade 0.75 x 4mm
| Measuring range mm | 0 - 25 mm |
| Measuring range | 0 - 1" |
| Resolution mm/inch | 0.001 / .00005" |
| Error limit µm | 4 µm |
| Measuring force (N) | 5 - 10 |
| Battery type | CR 2032 (3V Lithium) |

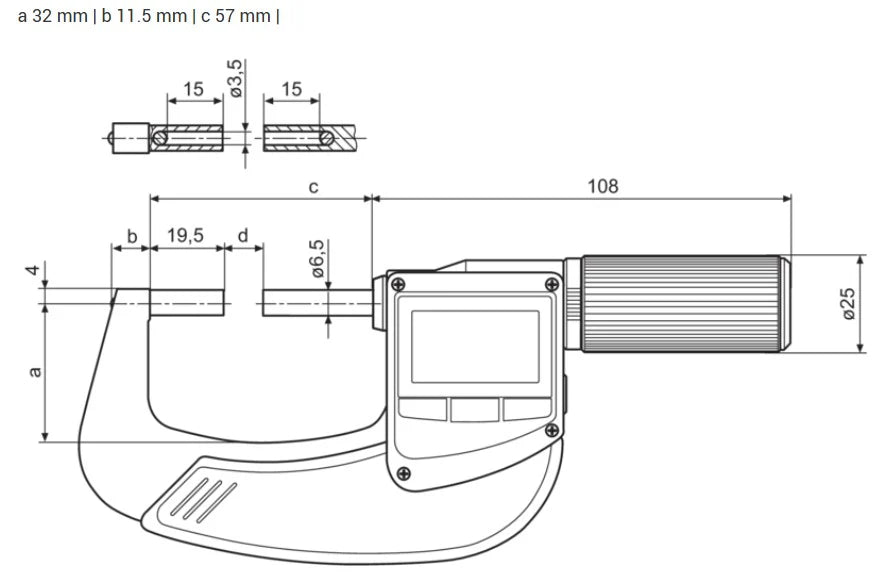

| Spindle diameter | 6.5 mm |
| Spindle thread pitch_mm | 5 mm |
