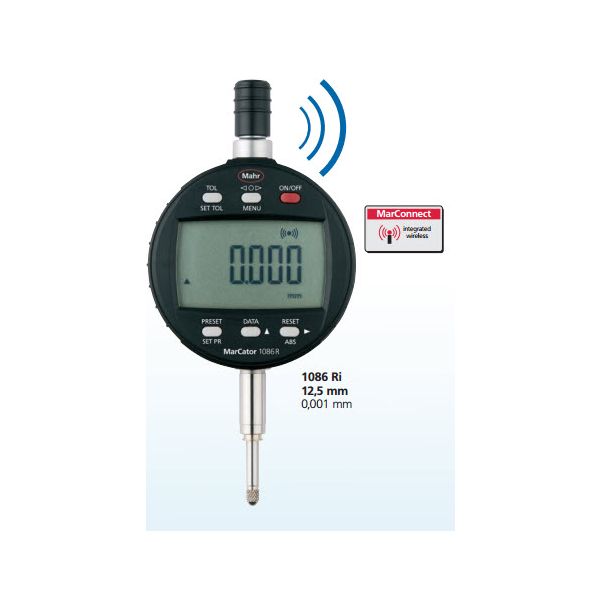

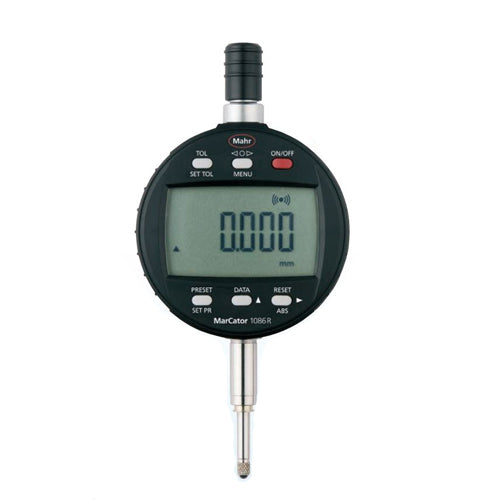

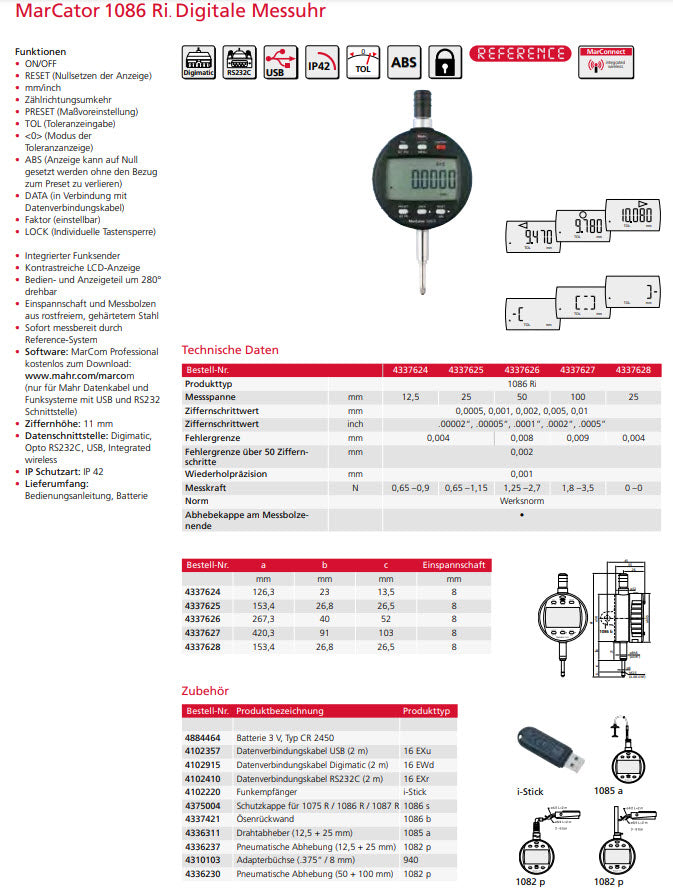

The Mahr 4337624 Digital Indicator 1086 Ri has the following specifications:
- Measuring Range: 0-12.5mm/.5?
- Resolution switchable: 0.0005 / 0.001 / 0.002/ 0.005 / 0.01 mm
- Span of error: 0.005mm
- Measuring Force: 0.65 – 0.90N
- Weight: 130G
- Mounting Shank: 8h6
Features:
- Integrated wireless data transmission.
- Immediate measurement due to the reference system.
- Individual button can be locked – lock functions.
- Operating and display unit can be rotated to 280 degree.
- High contrast lcd with 11mm high digits.
- Operating temperature approx 3 years(2000 work hrs/year).
- Maximum measuring speed 1.5m/s.
- Marconnect data output: choose either USB, OPTO TS232C, digimatic or integrated wireless.
- Operating temperature 10-40 degree c.
- Class of protection IP42 in accordance to IEC 60523.
- Supplied with: battery, operating instructions.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
