Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm

Roll over image to zoom in Click on image to zoom

Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm

Name: Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm
Brand: Mahr
SKU: 4431100
Price: 554.41 GBP
Availability: InStock

MahrSKU: 4431100

All prices exclude VAT, which will be added at checkout.

Price:

£554.41 £656.11

Quantity:

MarStand 820 FG

Art. no. 4431100

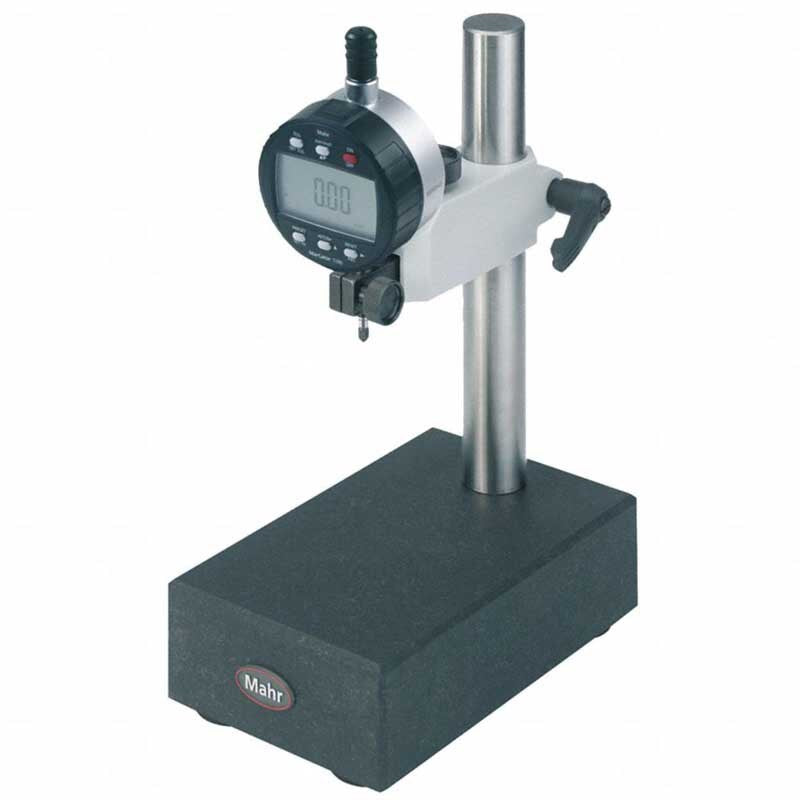

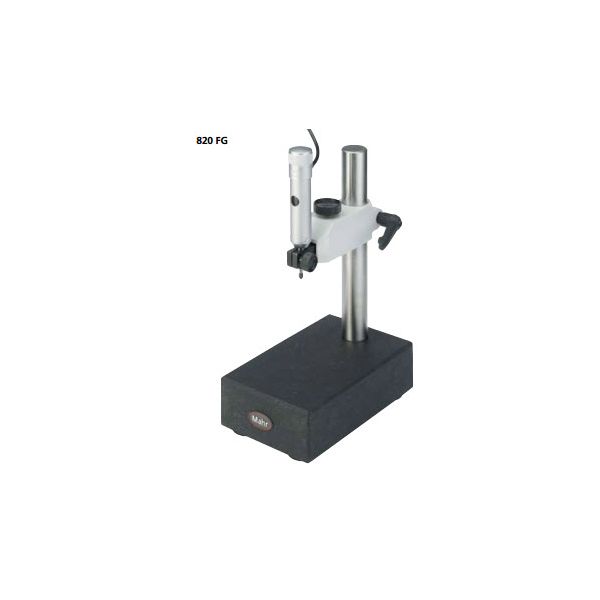

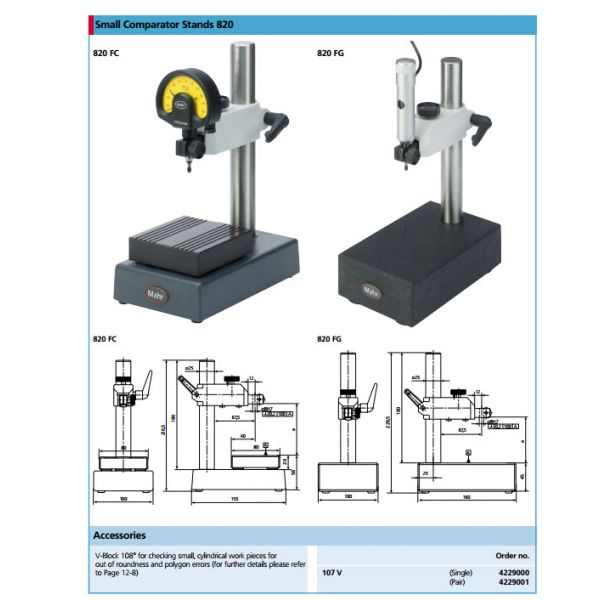

Small comparator stand, plate made of granite MarStand 820 FG
Working range a: 0 - 130 mm
Mounting hole: 8H7
Fine adjustment

Stable design
Table plate made of black granite, lapped
Rugged, ground stainless steel column
Strong, rigid parallel spring-loaded system for precision adjustment
Adjustable support arm for indicating instrument

Working range a	0 - 130
Flatness tolerance DIN 876	t₁ = 4(1 + L/1000) µm, L in mm
Fine adjustment range mm	0.4 mm
Mounting hole	8H7
Product weight	3.2 kg
