- Measuring Range: 0-20"/0-500mm
- Resolution: .0005?/0.01mm
- Error Limit: .003?/0.07mm
- Weight: 2kg
Features:
- AUTO-ON/OFF
- DATA (Data transmission via connection cable)
- ON/OFF
- PRESET (for entering a numerical value)
- RESET (set display to zero)
- mm/inch
- LOCK function (key lock)
Features:
- Measuring blades for outside measurements
- High contrast analog display
- Locking screw above
- Rounded measuring blades for inside measurements
- Slide and beam made of hardened stainless teel
- Immediate measurements due to the Reference System
- Raised guideways for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
- Digit height 10mm
- Data Interface: USB, Opto, RS232C, Digimatic, Wireless
- Battery life 3 years
- IP 65
- Includes Battery, Instruction Manual, and Case

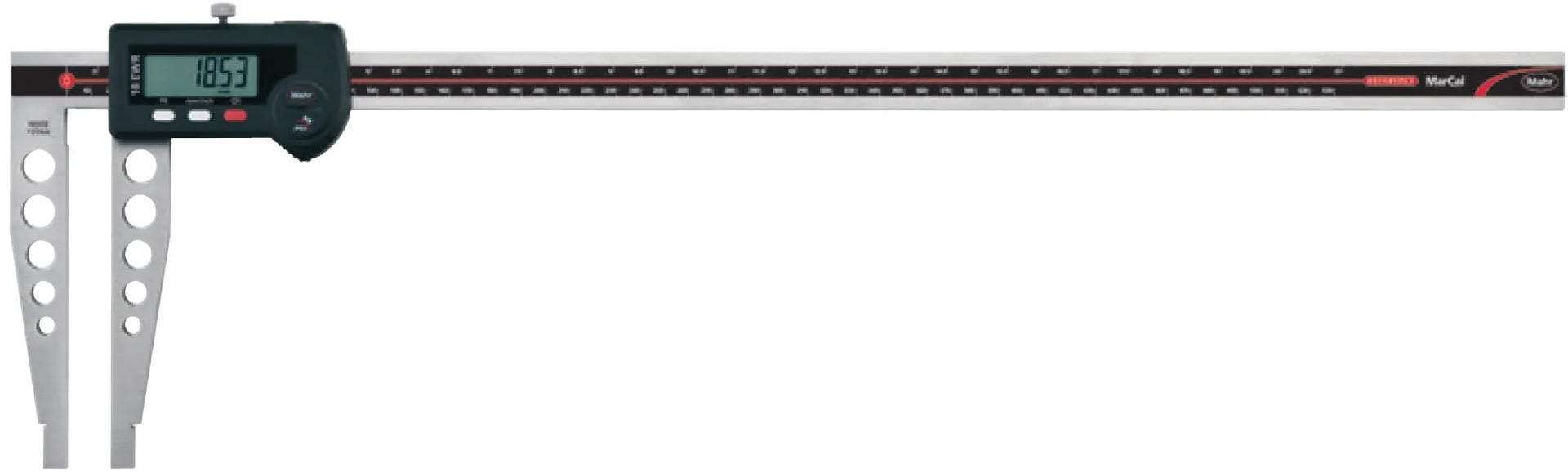

MarCal 18 ERW Digital Calipers without Measuring Blades
