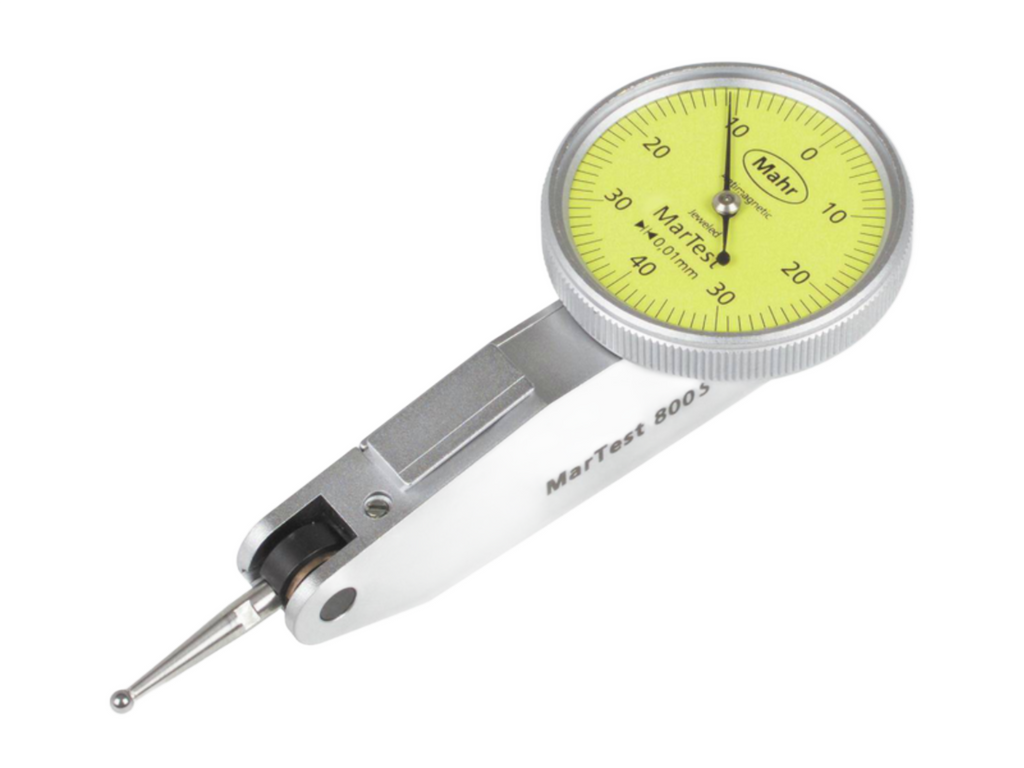

Mahr MarTest 800S Lever-Type DTI 4305200

Mahr MarTest 800S Lever-Type DTI 4305200

Roll over image to zoom in Click on image to zoom

Mahr MarTest 800S Lever-Type DTI 4305200

Mahr MarTest 800S Lever-Type DTI 4305200

Mahr MarTest 800S Lever-Type DTI 4305200

MahrSKU: 4305200

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£90.00 £115.00

Quantity:

All prices exclude VAT, which will be added at checkout.

MarTest 800S Lever-Type DTI 4305200

Specification

Measuring range mm ± 0.4
Product type 800 S
Graduation value mm 0.01
Standard DIN 2270
Figure on dial face 40-0-40
Range per rev. in mm 0.8 mm
Span of error fe (µm) 10 µm
Total span of error fges (µm) 13 µm
Measuring value hysteresis fu (µm) 3 µm
Partial measuring range ft (µm) 5 µm
Repeatability fw (µm) 3 µm
Measuring force 0.15 N
Scale diameter 27.5 mm

All images are for representation only.
