MarTest 801 S
Art. no. 4305950

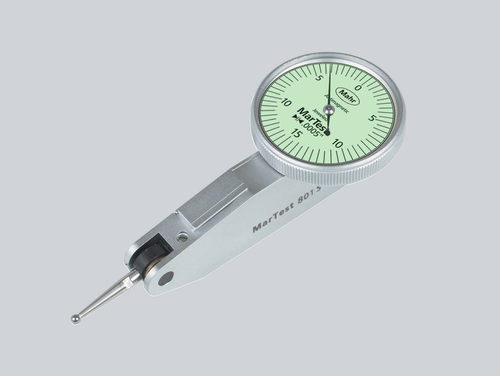

Test indicator MarTest 801 S
Factory standard
Measuring range mm: ± .015"
Graduation value inches: .0005"
Package contains: spanner for changing the styli, stylus dia. ø .0008", mounting shaft 800a3/8, test certificate, instruction manual, case
| Product type | 801 S |
| Measuring range inches | ± .015" |
| Pointer rotation (inches) | .03" |
| Deviation range fe (inches) | .0004" |
| Total deviation range fges (inches) | .0005" |
| Partial measuring range ft (inches) | .0002" |
| Measuring value hysteresis fu (inches) | .00012" |
| Repeatability fw (inches) | .0001" |
| Measuring force | 0.15 N |
| Figur on dial face | 15-0-15 |
| Dial color | Green |
| Scale diameter (inches) | 1.1" |
No technical information is currently available.
No application information is currently available.
