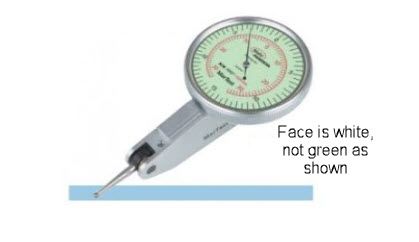

Mahr Inch/Metric Test Indicators 4307106 Model: 800SGI, Face 38mm, Range 0.03"/0.3mm, Graduation 0.0005"/0.01mm

Roll over image to zoom in Click on image to zoom

Mahr Inch/Metric Test Indicators 4307106 Model: 800SGI, Face 38mm, Range 0.03"/0.3mm, Graduation 0.0005"/0.01mm

Name: Mahr Inch/Metric Test Indicators 4307106 Model: 800SGI, Face 38mm, Range 0.03"/0.3mm, Graduation 0.0005"/0.01mm
Brand: Mahr
SKU: 4307106
Price: 72.0 GBP
Availability: InStock

MahrSKU: 4307106

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£72.00 £120.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Mechanism
• Shockproof
• Anti magnetic
• Movement bearings are jewelled with 8 precious stones
• Automatic matching to sensing direction, thus ensuring error-free reading
Unit of Measurement: mm
Measuring Range: 0.3mm ±
Dial Style /Diameter: 38mm
Readings: 0.01mm
Length of Styli: 11.5 mm
Measuring Force: 0.15 N

Mahr Test Indicators 4307106 Graduation: 0.01mm Model: 800SGI Range: 0.6mm Dial Face 38mm

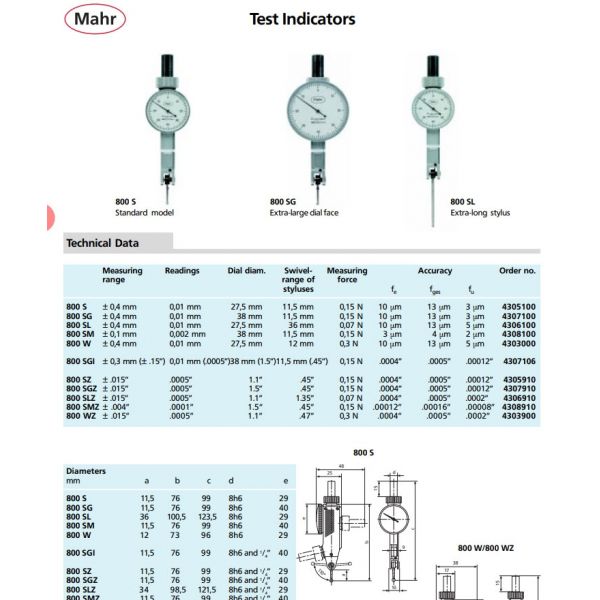

Product Information
Part Number	4307106
Measuring Ranges	0.03"
Resolution	0.01mm
Graduation	.0005"/.01mm
Accuracy	.01mm
Unit of Measurement	Metric Inch
Measuring Force	0.15N
Tip Diameter Ø	2mm
Length	14.5mm
Repeatability	3µm
Dial Reading	15-0-15
Dial Face Size Ø	38mm
Hysteresis	.003mm
Stem Diameter	8mm
Manufacturer	Mahr
