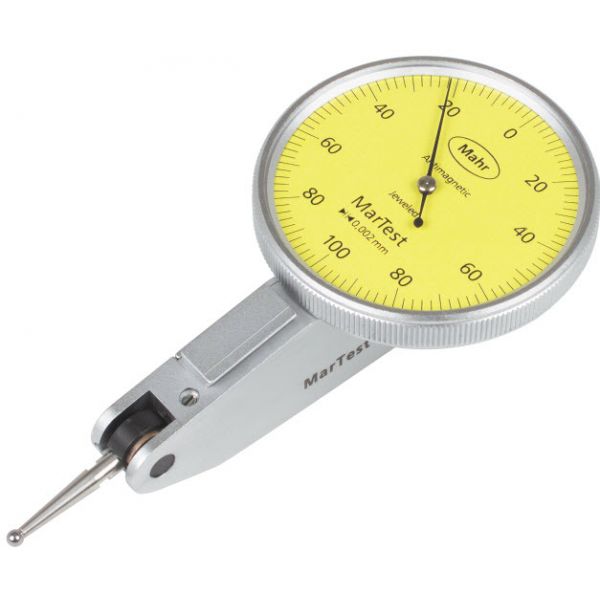

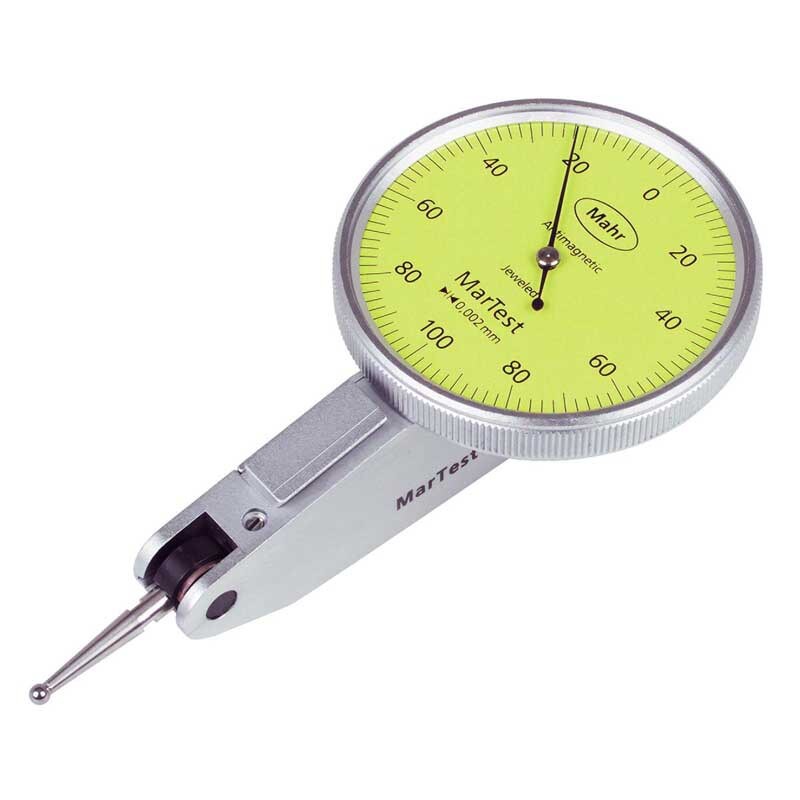

Mahr Test Indicators 4308200 Graduation: 0.002mm Model: 800SGM Range: .2mm Type: Metric Face 38mm

Mahr
A complete product range and a wide range of accessories that offers the best solution for every measuring task. With the computer aided design mechanism you have the reassurance of accurate measurement results. The sealed unit making the working impervious to liquids these indicators are ideal for use in a workshop environment. Applications Testing concentricity and run-out of shafts and bores Testing of parallelism and alignment of surfaces in engineering and tool making


Unit of Measurement: Metric
Measuring Range: +/-0.1mm
38mm Face
Readings: 0.002mm
Length of Styli: 14.5mm
Measuring Force: 0.15 N
