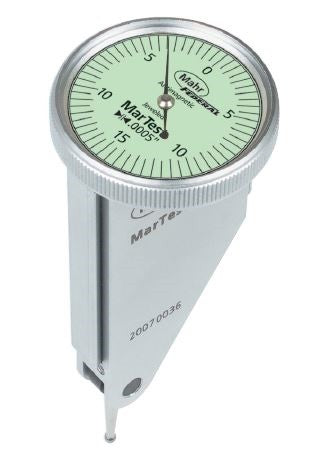

Mahr Vertical Test Indicators 4302950, Graduation: 0.0005'', Model: 801V, Range: .030'', Type: Vertical, Face 1.1'', Stylus 0.57'', Force 0.2N

Roll over image to zoom in Click on image to zoom

Mahr Vertical Test Indicators 4302950, Graduation: 0.0005'', Model: 801V, Range: .030'', Type: Vertical, Face 1.1'', Stylus 0.57'', Force 0.2N

Name: Mahr Vertical Test Indicators 4302950, Graduation: 0.0005'', Model: 801V, Range: .030'', Type: Vertical, Face 1.1'', Stylus 0.57'', Force 0.2N
Brand: Mahr
SKU: 4302950
Price: 109.51 GBP
Availability: InStock

MahrSKU: 4302950

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£109.51 £129.60

Quantity:

All prices exclude VAT, which will be added at checkout.

Mahr A complete product range and a wide range of accessories that offers the best solution for every measuring task.

With the computer aided design mechanism you have the reassurance of accurate measurement results.

The sealed unit making the working impervious to liquids these indicators are ideal for use in a workshop environment.

Applications Testing concentricity and run-out of shafts and bores Testing of parallelism and alignment of surfaces in engineering and tool making

Mahr Vertical Test Indicators 4302950, Graduation: 0.0005'', Model: 801V

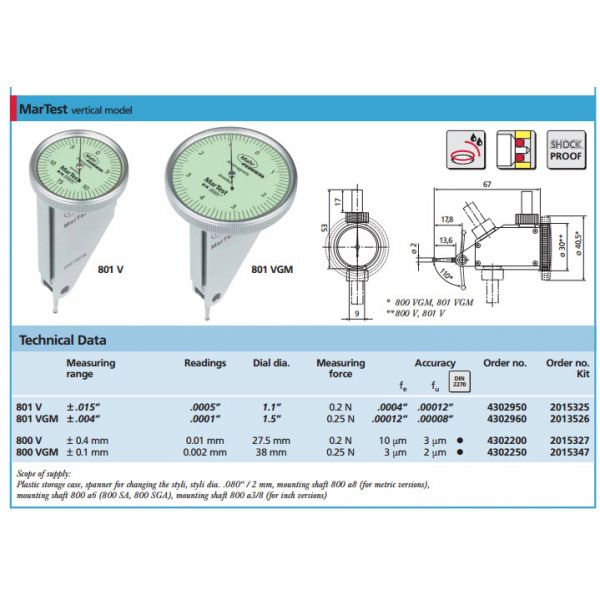

Product Information
Part Number	4302950
Measuring Ranges	0.03"
Resolution	0.01mm
Graduation	.0005"
Accuracy	.0004"
Unit of Measurement	Inch
Measuring Force	0.2N
Tip Diameter Ø	.078"
Length	.57"
Repeatability	±.0001"
Dial Reading	15-0-15
Dial Face Size Ø	1.1"
Hysteresis	.00012"
Stem Diameter	3/8"
Manufacturer	Mahr
