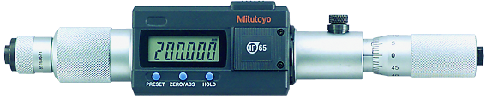

Main Unit for Tubular Inside Micrometer 339-102

Name: Main Unit for Tubular Inside Micrometer 339-102
Brand: Mitutoyo
SKU: 339-102
Price: 714.0 GBP
Availability: InStock

MitutoyoSKU: 339-102

All prices exclude VAT, which will be added at checkout.

Price:

£714.00 £1,020.00

Quantity:

This is an extension pipe type inside micrometer that offers you the following benefits:

Interchangeable extensions in a hollow pipe design.
Carbide measuring faces.
Digimatic type with data output.
It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	8 - 9 "
Measuring span:	25 mm
Digital step:	0,001 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Display:	LCD, character height 7.5 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Carbide
Extension:	ø17 mm
Extension rods:	-
Power supply:	1 battery SR-44
Battery life:	Approx. 1,5 years under normal use
Delivered:	Including box, key, 1 battery, extensions, micrometer head
DATA/HOLD:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
2 x PRESET:	Yes
Delivered:	Including box, spanner (301336/04GAA274), screwdriver (05CAA952), 1 SR44 battery
Spindle feed error:	0.00015 inch
Data output:	Yes
Mass:	440 g

Product Information
Part Number	339-102
Measuring Range	200-225mm
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
IP Rating	IP65
Type	Stick Micrometer
Graduation on Thimble	.01mm
Micrometer Head Stroke	25mm/1"
Product Description	Digimatic Long Range Extension Tube Inside Micrometer
Resolution/Capacity	.001mm/.00005"
