Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001
Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001
Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001
Roll over image to zoom in Click on image to zoom
Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001

Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001

MitutoyoSKU: 139-001
List price: £184.00 Offer price: £134.00 Excluding VAT

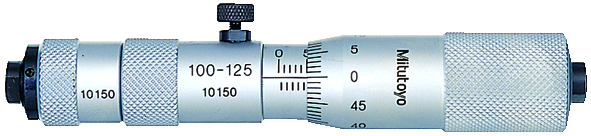

A Mitutoyo inside micrometer head designed for standalone use or in conjunction with optional interchangeable extension tubes. Satin-chrome finished.
Specification
Inch-Metric:
Metric
Measuring span:
25 mm
10 mm(139-203), 25 mm (139-204)
Graduation:
0.01 mm
Spindle feed error:
3 µm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
ø13 mm (139-203, 139-204)
Measuring spindle:
Spindle pitch 0.5 mm
Measuring face:
Carbide
Extension rods:
25 mm, 50 mm, 100 mm, 200 mm
Delivered:
Including box, key, micrometer head
Mass:
490 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001 Click to open the PDF document
