MitutoyoSKU: 337-102
List price: £1,070.00 Offer price: £781.00 Excluding VAT

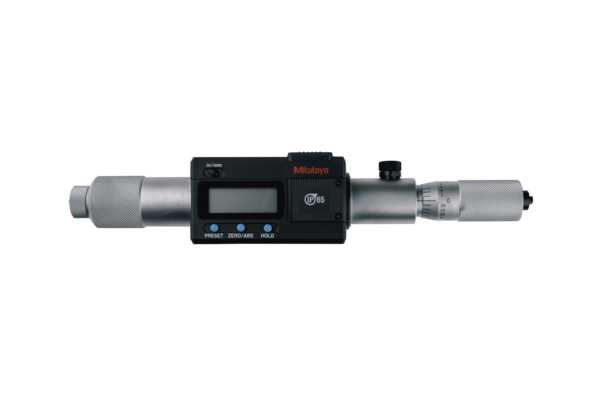

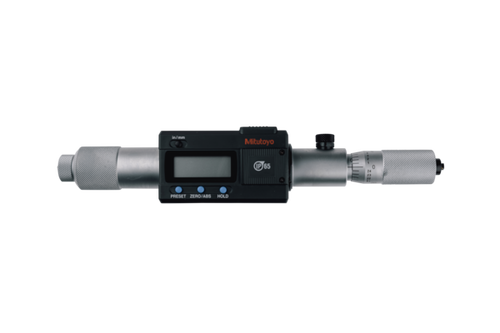

This is an extension rod type inside micrometer that offers you the following benefits:
  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces.
  • Digimatic type, with data output.
  • It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
8 - 9 "
Measuring span:
1 inch/25mm
Digital step:
0,001 mm/.00005"
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Display:
LCD, character height 7.5 mm
Measuring spindle:
Spindle pitch 0,5 mm
Measuring face:
Carbide
Extension:
ø12,5 mm
Extension rods:
-
Power supply:
1 battery SR-44
Delivered:
Including box, key, 1 battery, extensions, micrometer head
DATA/HOLD:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
2 x PRESET:
Yes
Delivered:
Including box, spanner (301336/300611), screwdriver (05CAA952), 1 SR44 battery
Spindle feed error:
0.00015 inch
Data output:
Yes
Mass:
445 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Main Unit for Tubular Inside Micrometer Digital, Carbide Tipped, 8-9" 337-102, No Extensions Click to open the PDF document
