Manual Test Stand TSB100 (Stand Only)
The lever operated Force Measurement Test Stand Model TSB100 is a solution for quick-action tensile testing and compression testing of up to 100 lbF (500 N) of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.
Features
- Compatible with all Mark-10 force gauges, accessories and grips
- Loading lever can be positioned in 30° increments for ease of operation
- Mounting holes for bench mounting

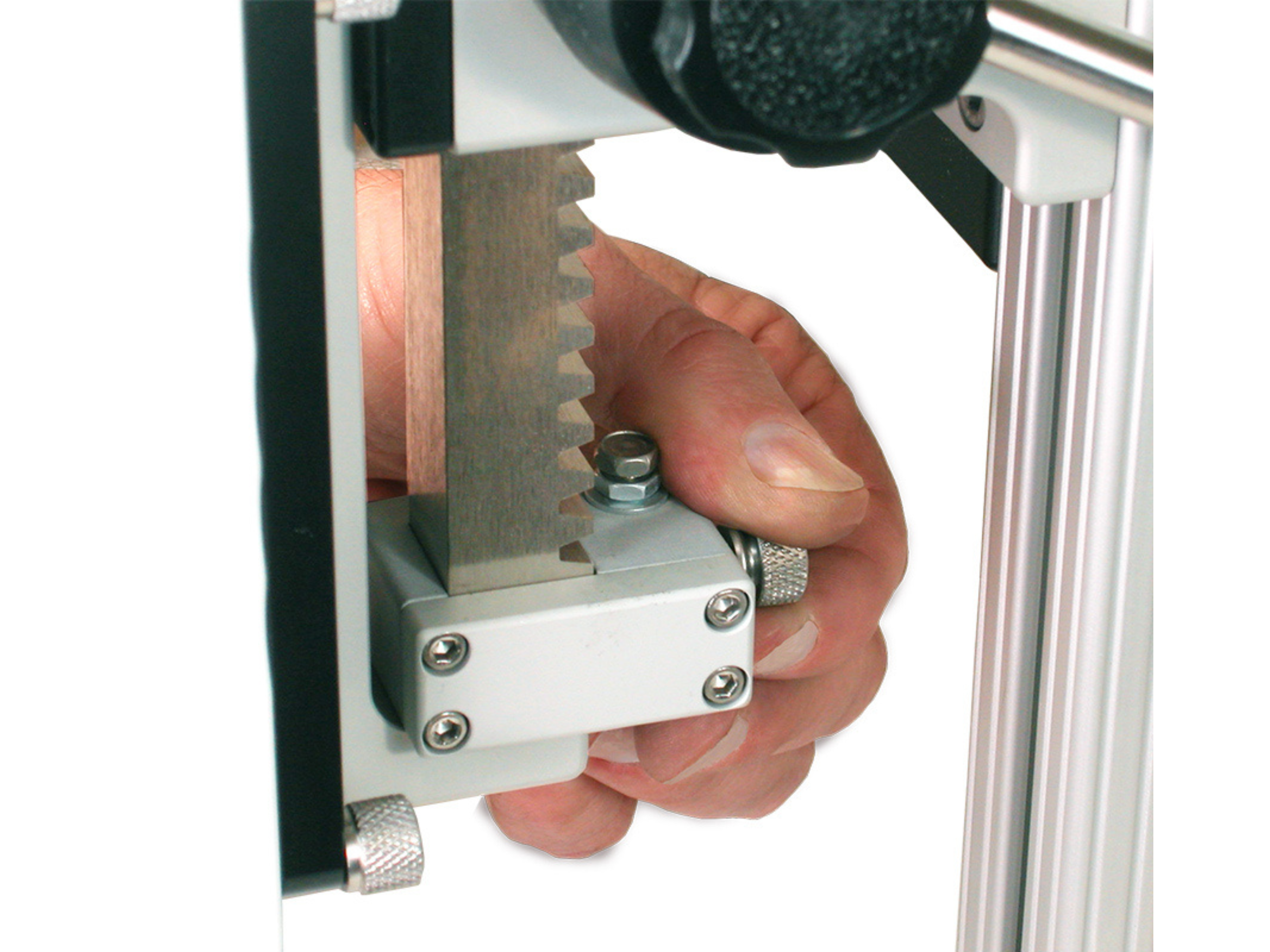

- Optional adjustable travel stops
- Precision ground rack for smooth precision motion

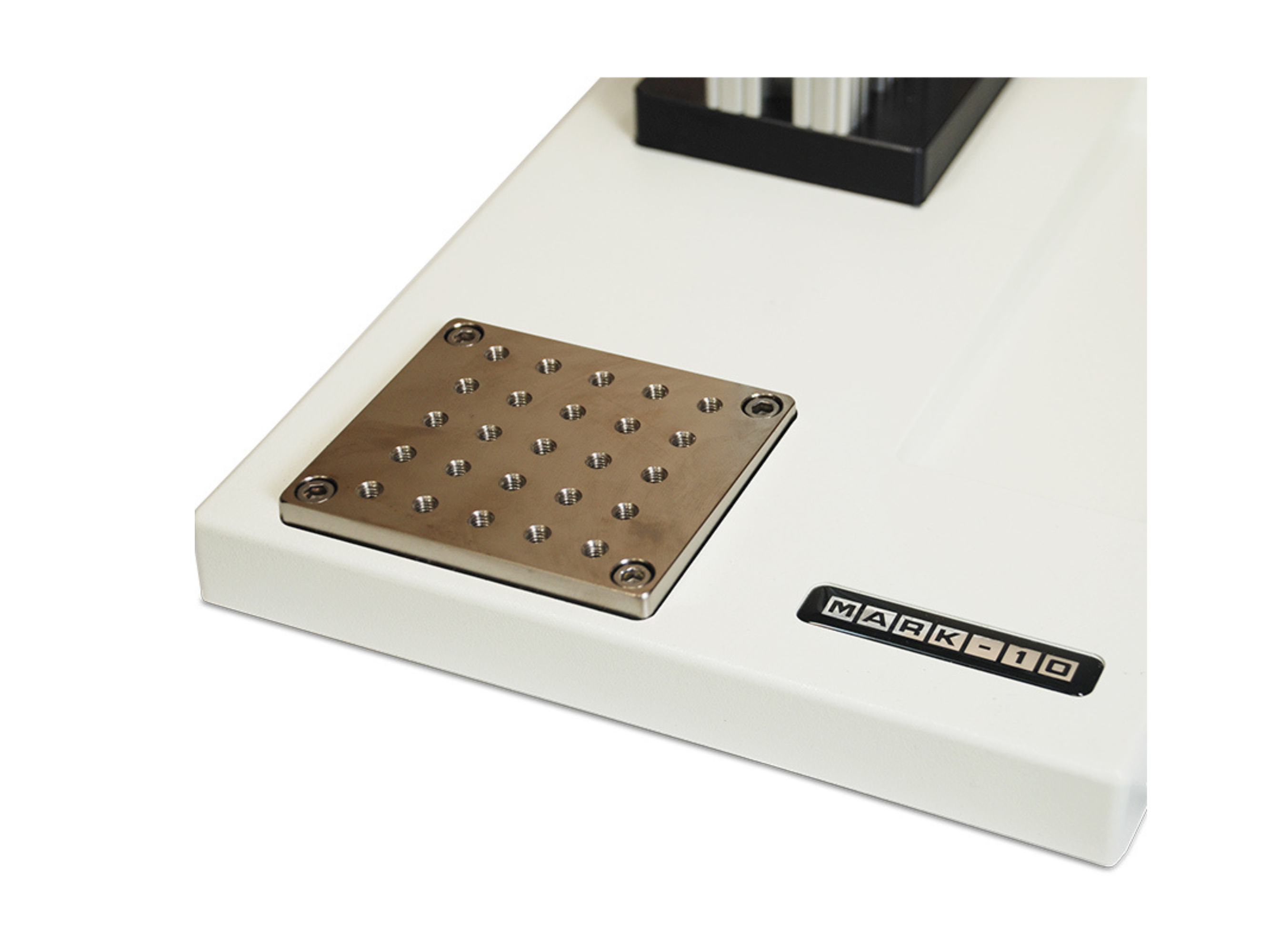

- Removable base plate with 25 #10-32 UNF holes for fixture mounting
- Low force friction brake

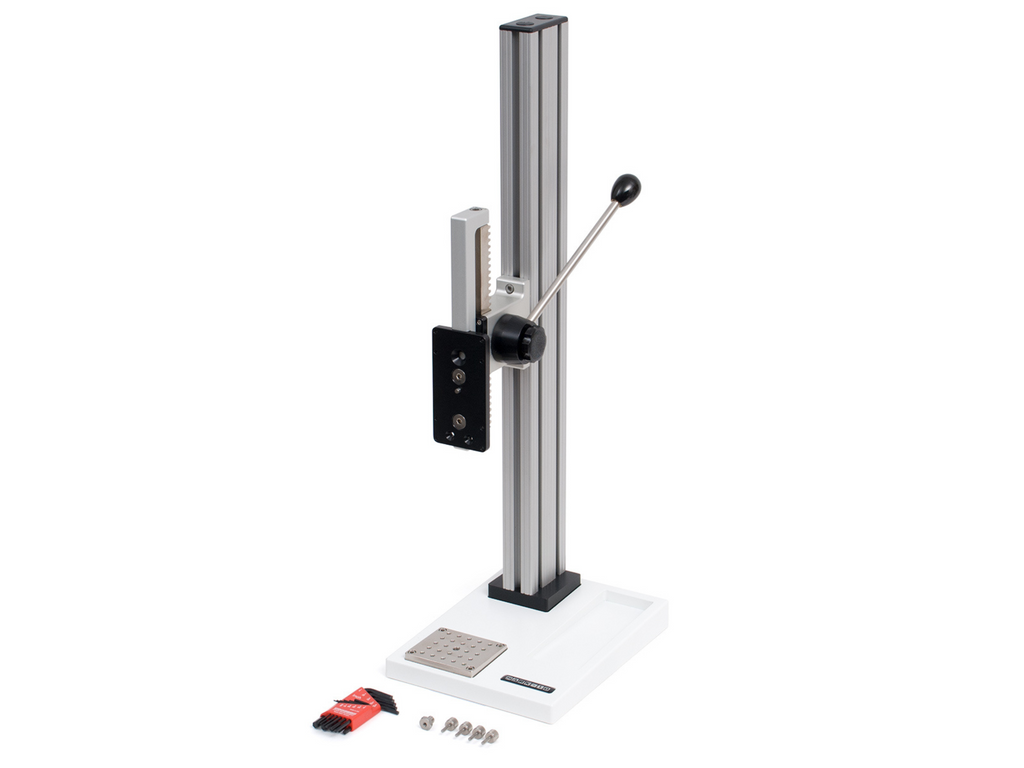

The TSB100 test stand includes the following accessories:
(1) G1030 thread adapter, 5/16-18M to #10-32F
(4) Thumb screw for force gauge
(1) Allen wrench set

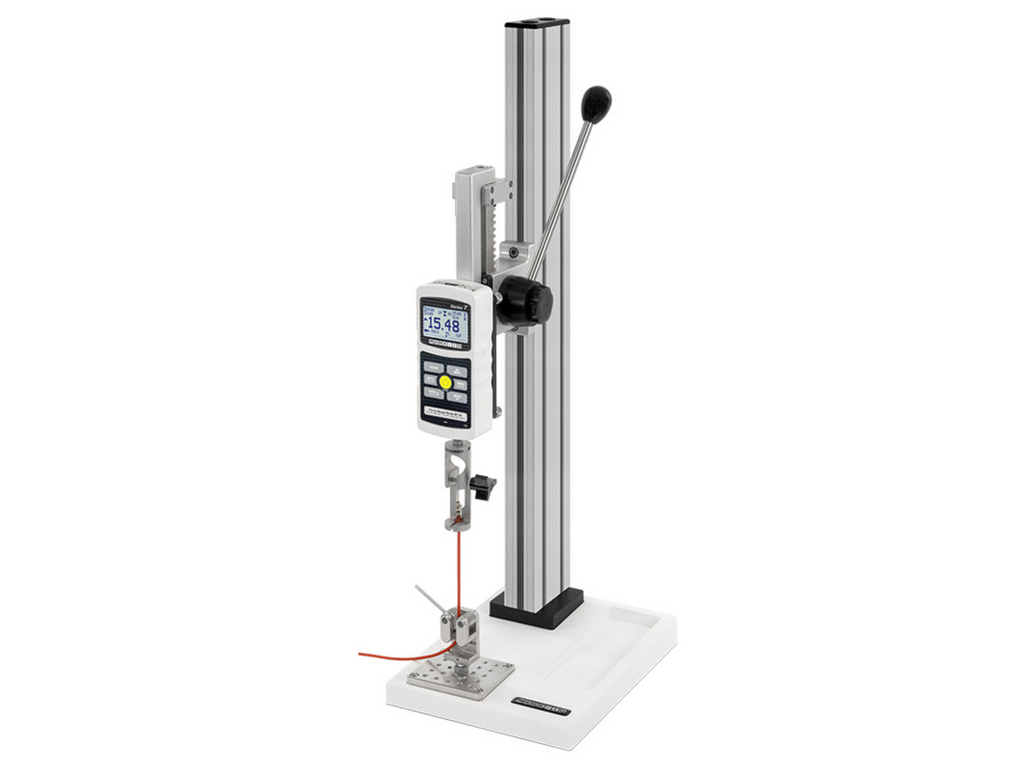

The stand will require a force gauge and accessories, sold separately.
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
