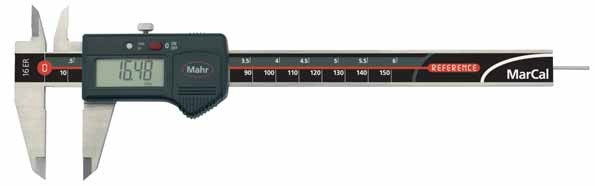

MarCal Digital Caliper 16 EWR without data output, with Flat Depth Rod and Friction Wheel - 4103063
- All Mahr digital calipers with "Reference" logo are equipped with the innovative Reference-System.
- The zero position just has to be set once: after setting the zero position, the zero remains stored for all further measurements. Therefore, once the caliper is switched ON or the slide is moved, the caliper is immediately ready for measurement. The need to reset to zero with a conventional caliper once the caliper is switched on has now become obsolete.
- Functions:ON/OFF, RESET (Set display to zero), mm/inch, Reference-Lock/Unlock, Auto-ON/OFF
- Immediate measurement due to the Reference system
- Excellent resistance against dust, coolants and lubricants, Protection Class IP67
- Life of the battery up to 3 years
- High contrast Liquid Crystal Display with 8.5 mm high digits
- Lapped guideway
- Dirt wipers are integrated in the slide
- Max measuring speed 2.5 m/s (100“/s)
- Slide and beam made of hardened stainless steel
- Measuring blades for inside measurement
- Step measuring function
- Locking screw
- Supplied with: Case, battery, operating instructions
