Mark-10 Advanced Ergonomics Kits Series E Grip Adapter E1011

Mark-10 Advanced Ergonomics Kits Series E Grip Adapter

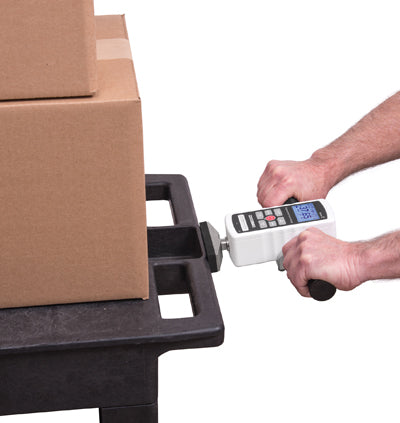

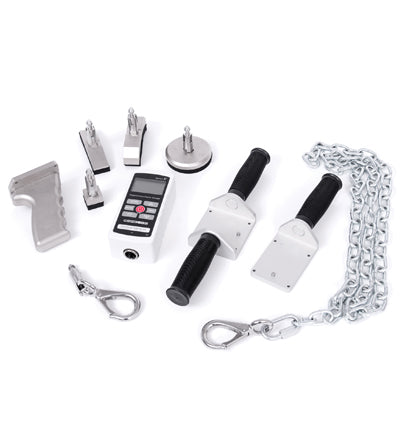

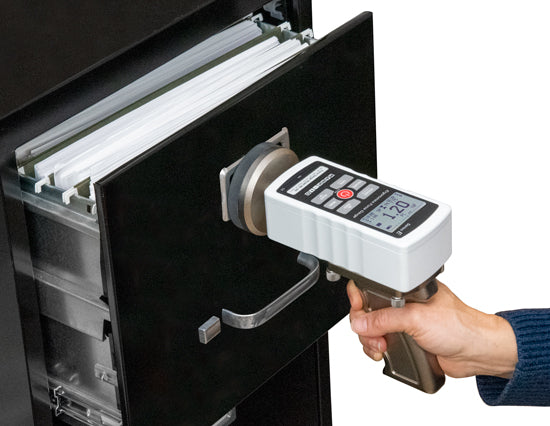

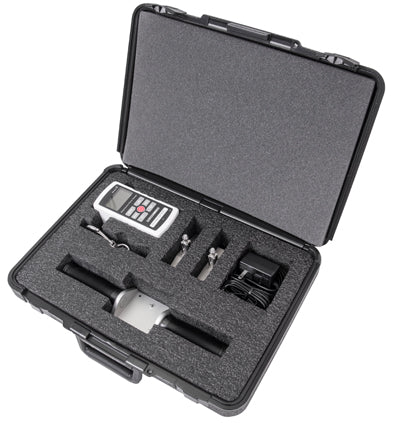

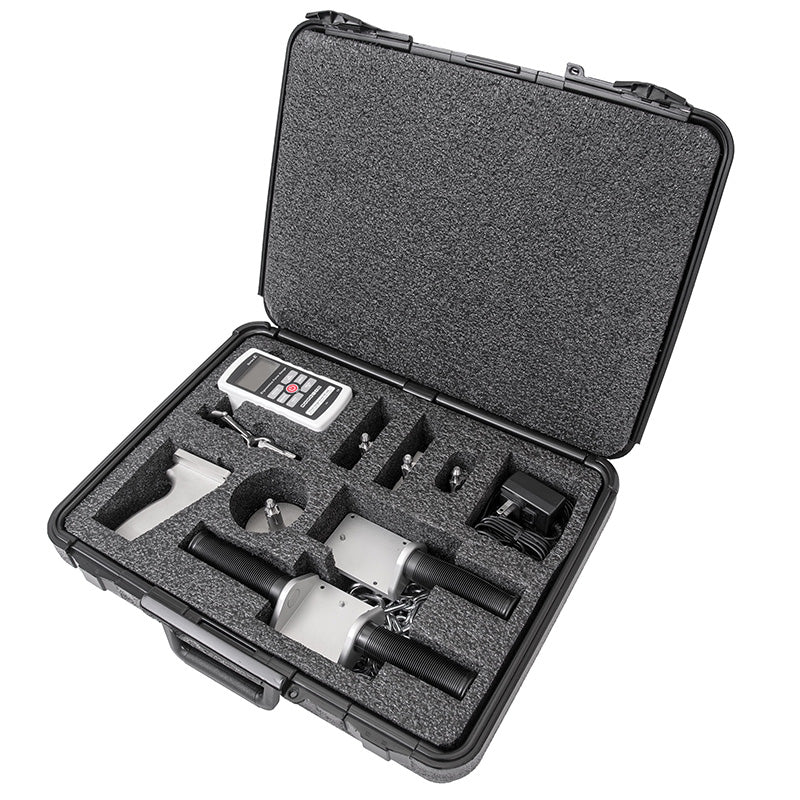

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

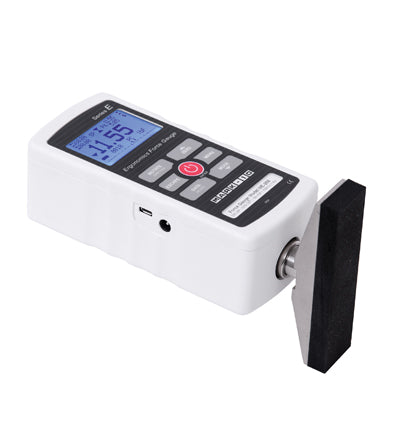

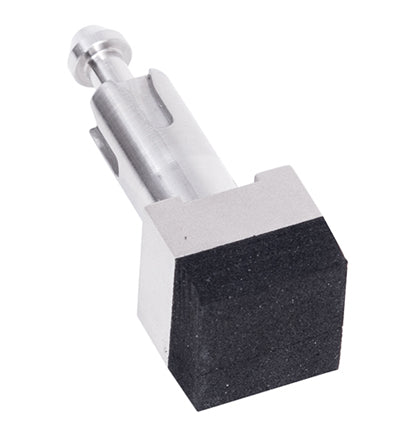

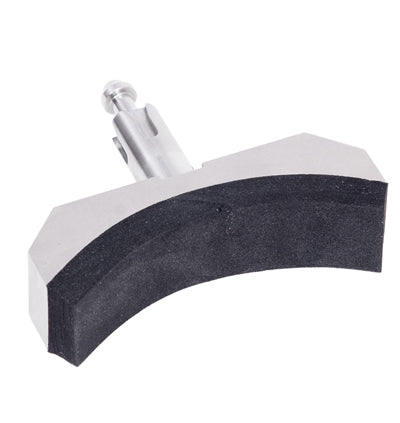

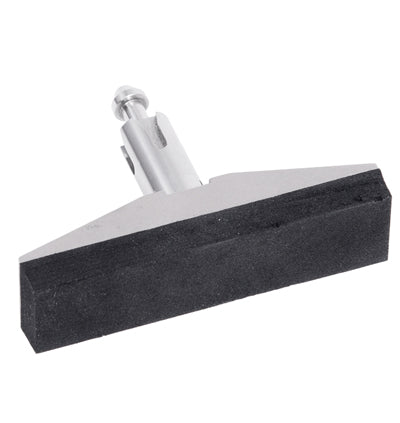

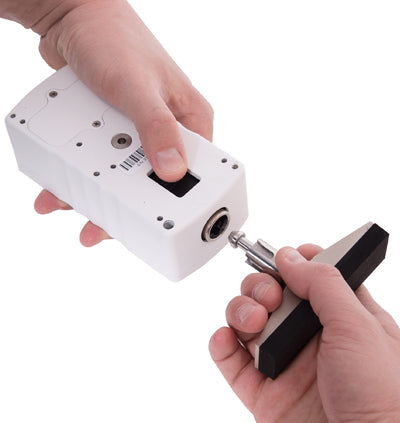

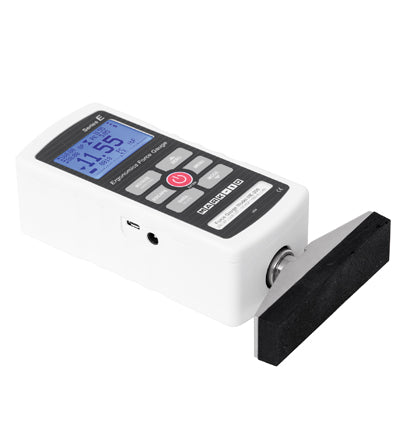

Attachments click and lock into place via innovative Click-Lock^® technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

• Measure real time and peak push and pull forces
• Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
• Click-Lock^® accessory mounting technology
• USB data output
• High / low limit indicators, for pass / fail and minimum force testing
• Averaging mode calculates average force over a period of time
• 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR^® Lite data collection software.
• Statistical calculations for saved data points

All images are for representation only.
