Mark-10 High Capacity Manual Test Stand Model TSF/TSFH Column Extension, 24" / 610 mm

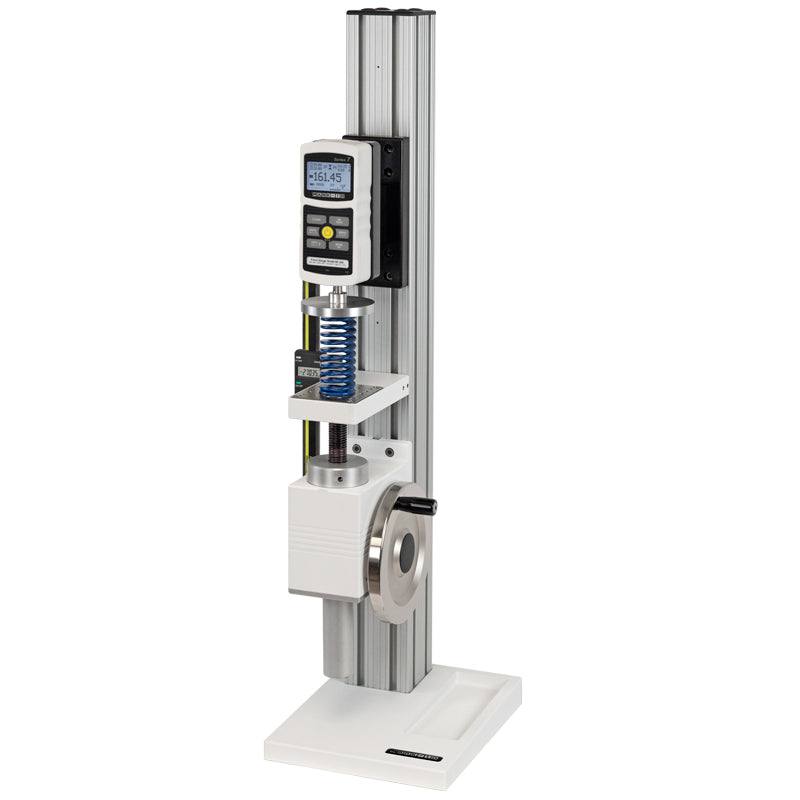

The TSF Force Measurement Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lbF (5 kN) of push or pull force.
The stand features a large side mounted hand wheel requiring minimal user effort and a rigid 3” x 3” column. A removable steel loading surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.
- Compatible with all Mark-10 force gauges, accessories and grips

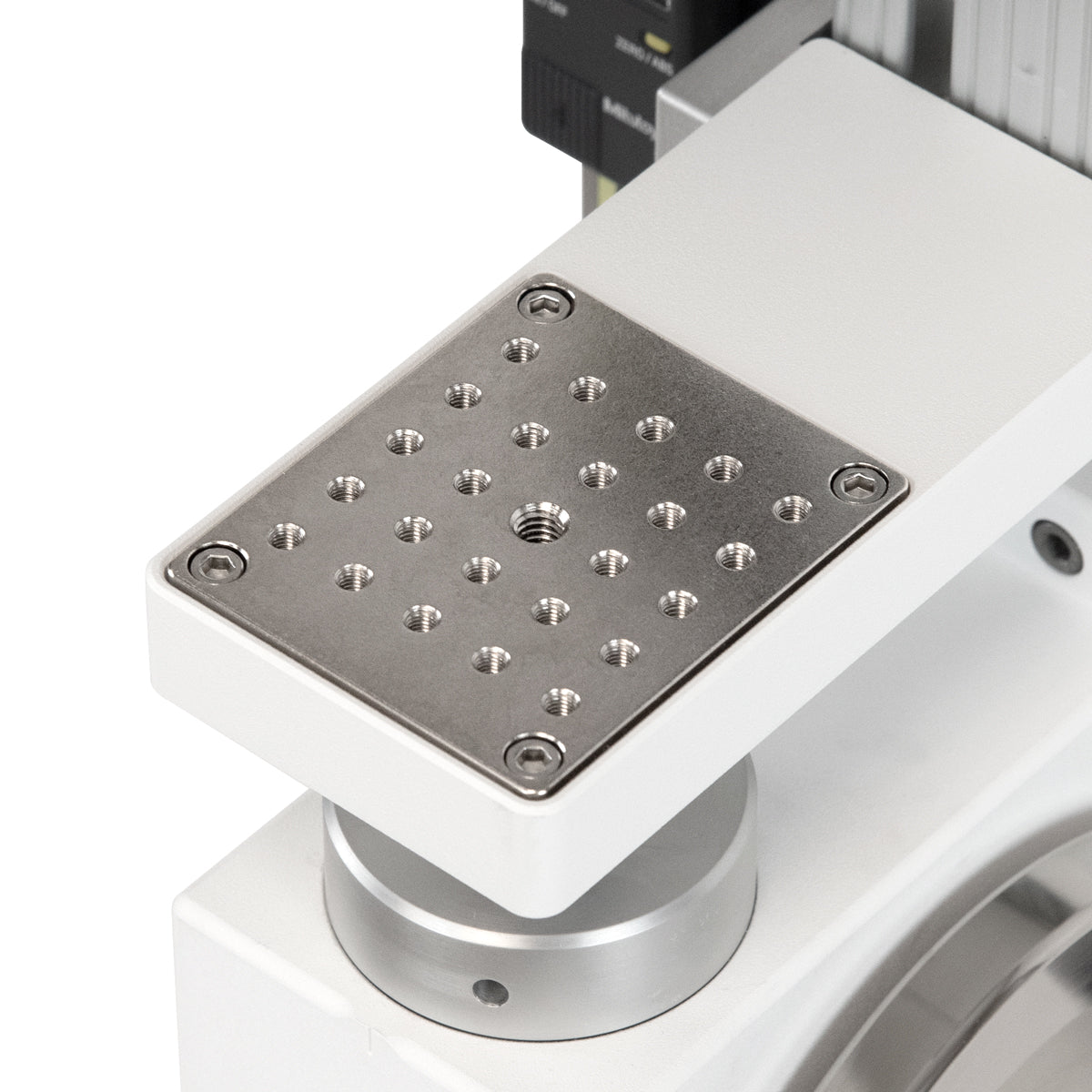

- Loading table with 25 #10-32 UNF holes for fixture mounting
- Smooth hand wheel operation
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
