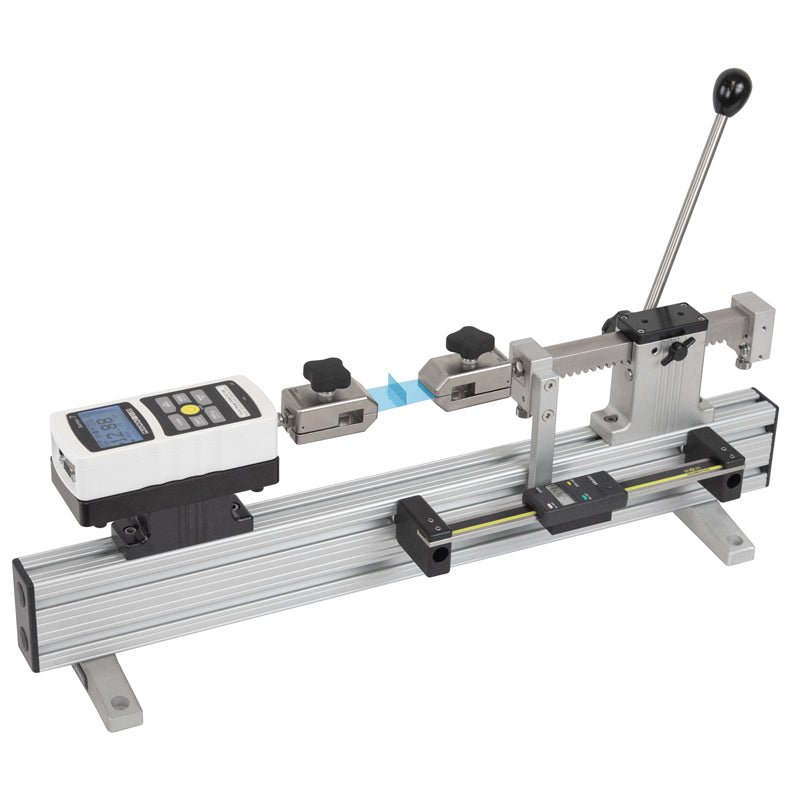

Mark-10 Manual Test Stand Model TSA750 / TSA750H Table Assembly
The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lbF (3.75 kN) of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.

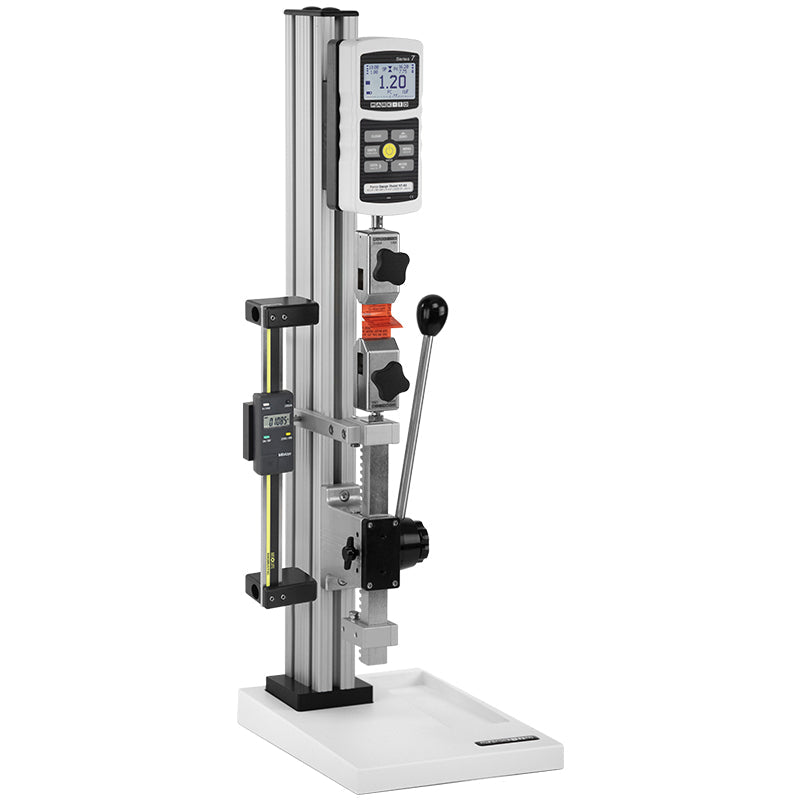

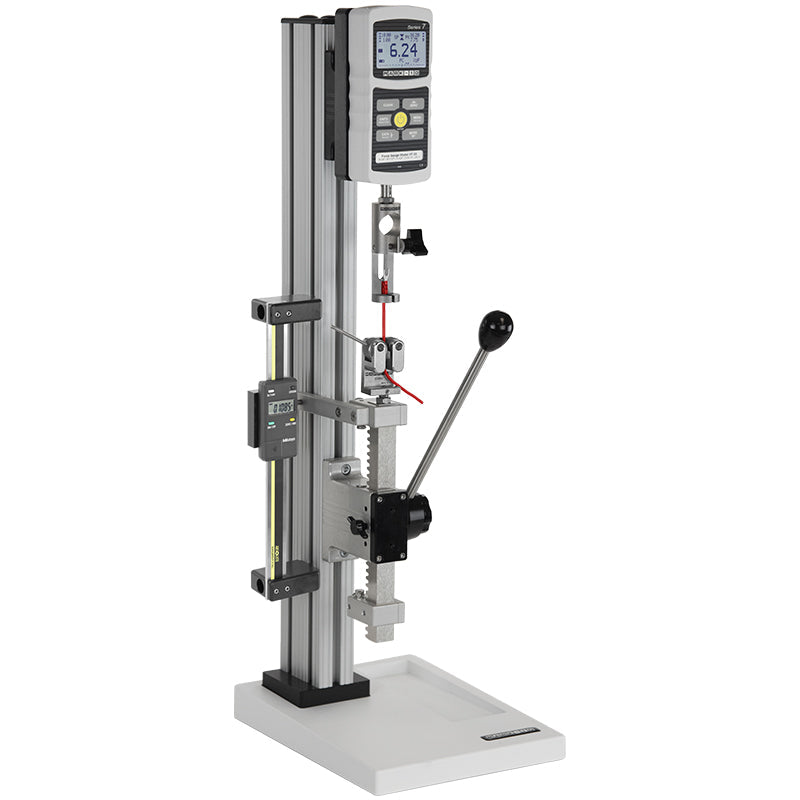

The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.
- Compatible with all Mark-10 force gauges, accessories and grips

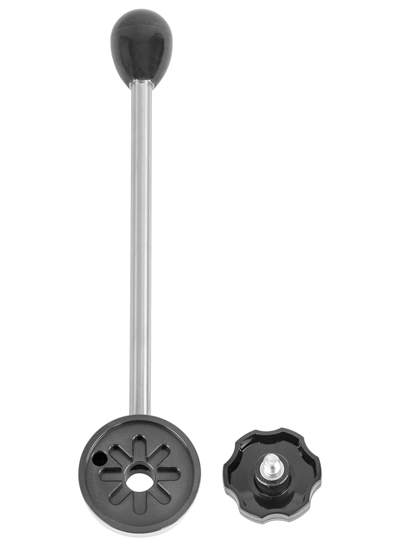

- Loading lever can be positioned in 30° increments for ease of operation
- Threaded holes for bench mounting
- Adjustable travel stops

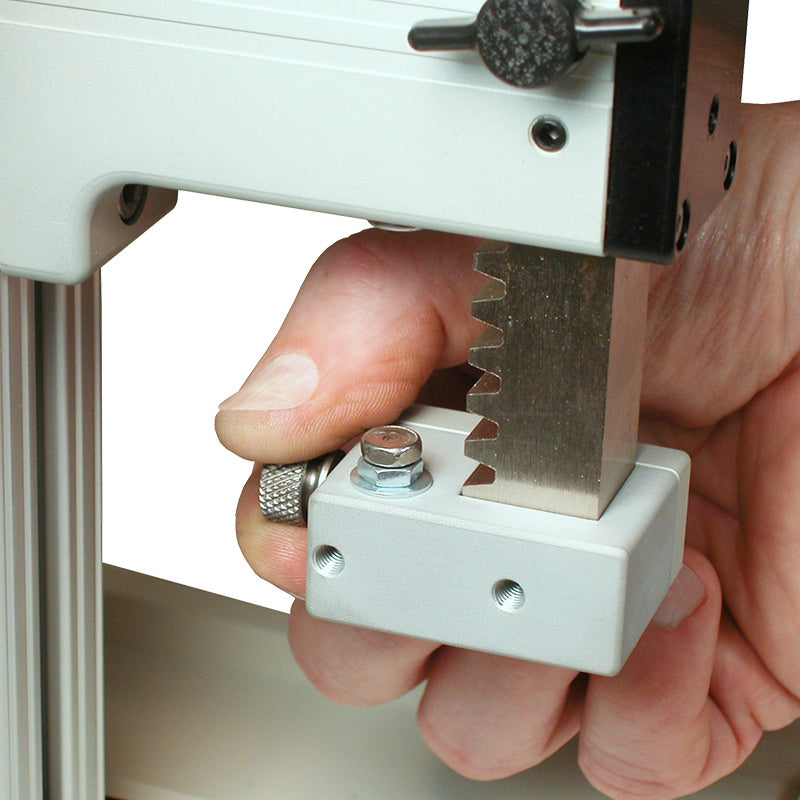

- Precision ground rack and pinion mechanism
- Adjustable wear plates for smooth, precise motion

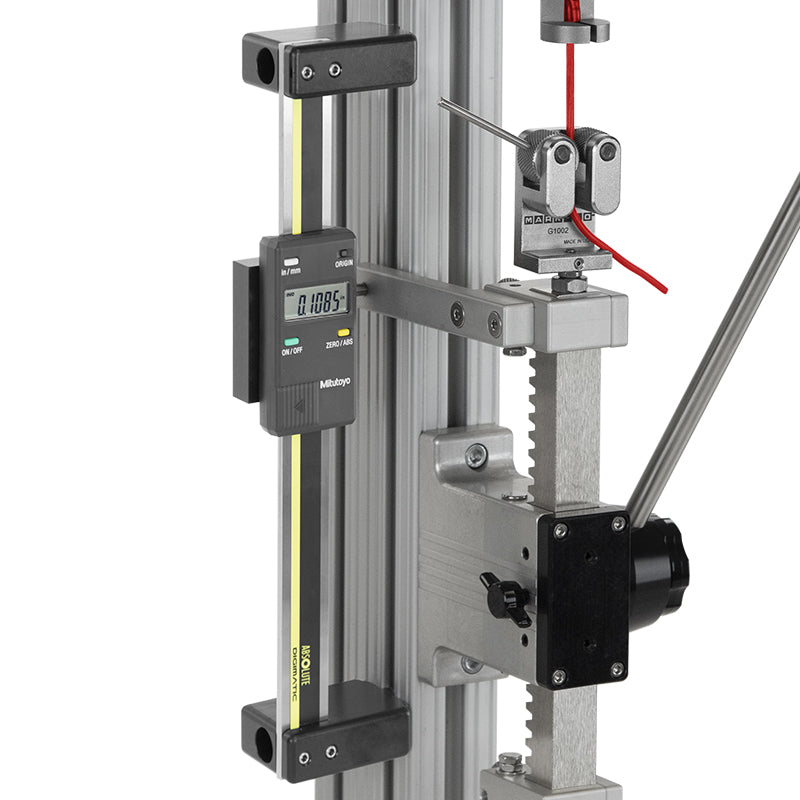

- Optional digital travel display
- Adjustable friction brake modulates the effort required to turn the lever
- Competitor force gauge mounting kits available
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
