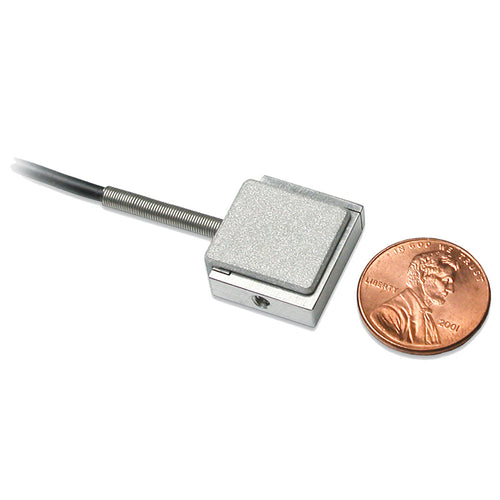

Mark-10 Miniature Force Sensors Series R04 MR04-025M

Mark-10 Miniature Force Sensors Series R04 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN

Extremely compact force measurement sensors for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.

Requires a Mark-10 indicator, available separately.

• Member of the Plug & Test^® family of interchangeable sensors and indicators
• Ultra-compact size
• Measures tensile and compressive forces
• NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
• Warranty: 3 years

All images are for representation only.
